Fitting sliding strip on the inner door panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

A sliding strip must be stuck onto the front and rear sides of the inner door panel in order to prevent creaking noises from the door area.

Sticking sliding strip onto the front of the inner door panel

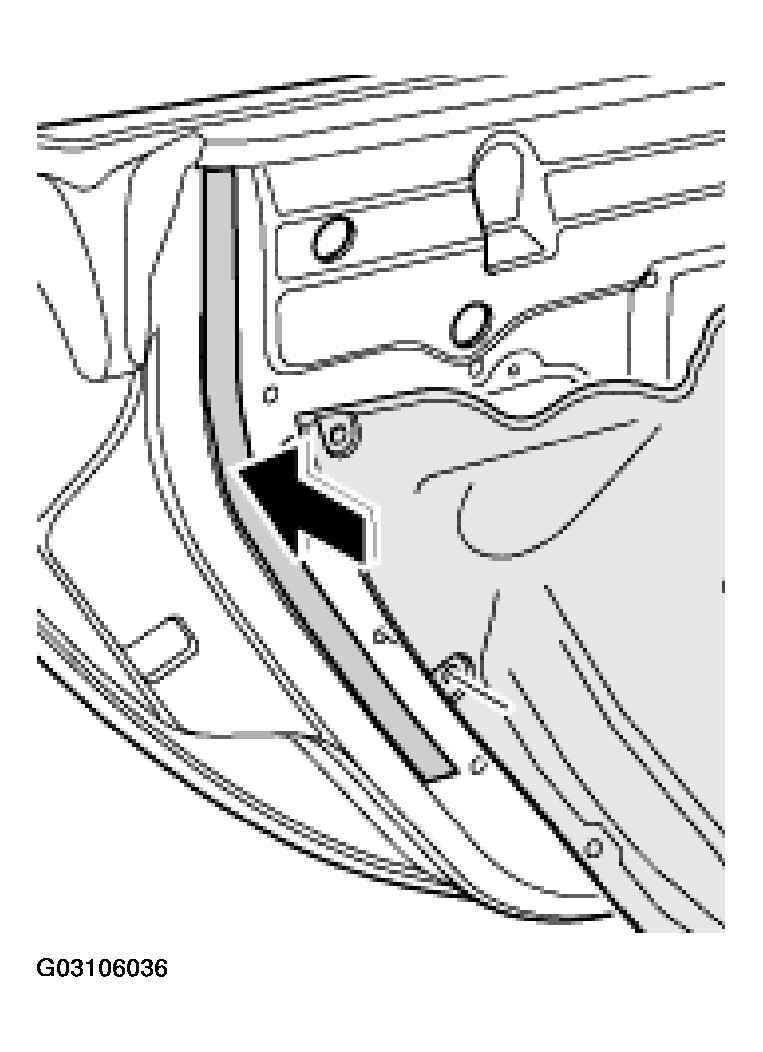

Fig 1: Sticking Sliding Strip Onto Front Of Inner Door Panel (As Of MY 1997)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Remove backing film from the sliding strip and stick the strip onto the front of the inner door panel -arrow-. Start at the top (top edge of inner door panel) and follow the curvature. See Fig 1 .

Sticking sliding strip onto the rear of the inner door panel

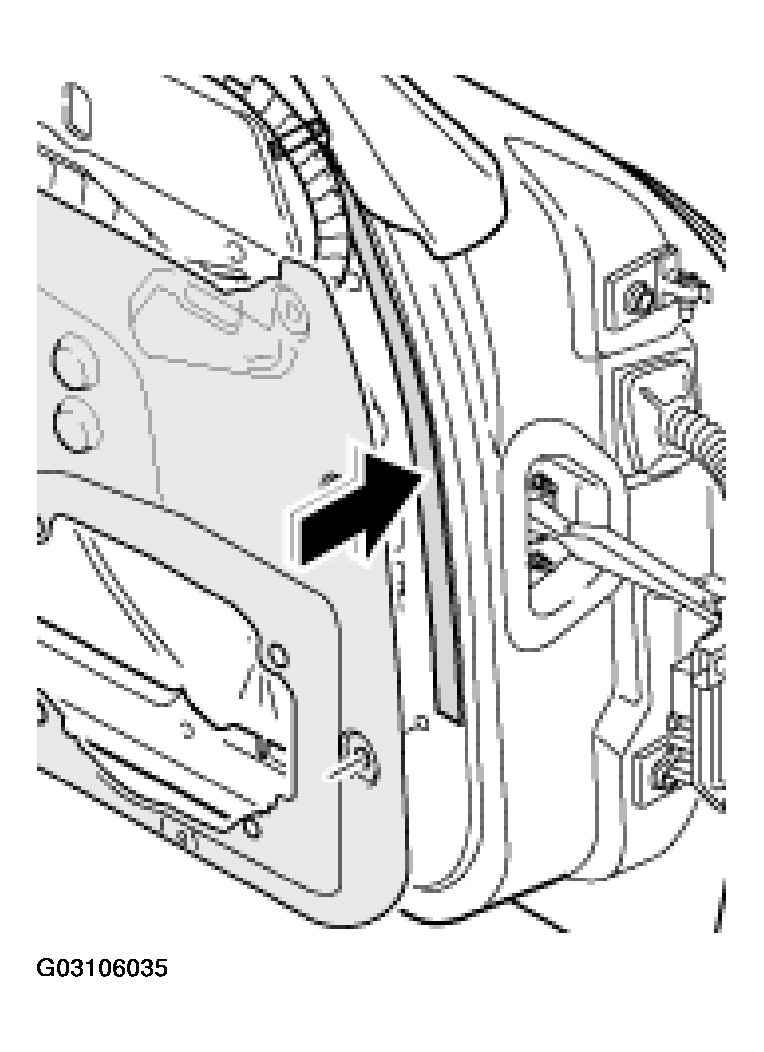

Fig 2: Sticking Sliding Strip Onto Rear Of Inner Door Panel (As Of MY 1997)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Remove backing film from the sliding strip and stick the strip onto the rear of the inner door panel -arrow-. Start at the top (top edge of inner door panel) and follow the curvature. See Fig 2 .
