Removing and installing the frame for the roll-over protection system - as of model year 2002: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The frame for the roll-over protection system as of 2002 differs from the frame for the roll-over protection system up to 2001 by their different component arrangement of DME + Tiptronic control unit, relay carrier, convertible top Z drive, and Z-supports behind the frame -3-. See Fig 2 .
- The frame for roll-over protection systems as of 2001 can only be installed in vehicles with Cabriolet rear glass window.

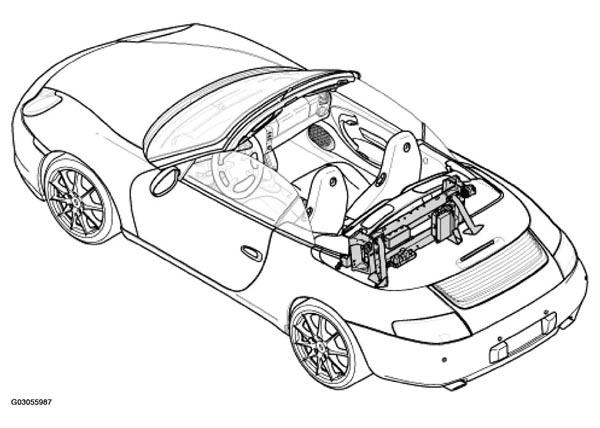

REMOVAL/INSTALLATION PROCEDURE OF ROLL-OVER PROTECTION SYSTEM FRAME (AS OF MY 2002)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Hexagon-head bolt | 4 | Unscrew. | Tighten. See TIGHTENING TORQUES . |
| 2 | Collar nut | 4 | Unscrew. | Tighten. See TIGHTENING TORQUES . |
| 3 | Frame | 1 | Undo hexagon-head bolts -1-2-3- . See Fig 2 . | Position frame in the vehicle. -Dimension X: 491 +/- 1 mm-1-2- . See Fig 2 . |
| 4 | Collar nut | 2 | ||
| 5 | Relay carriers | 1 | ||
| 6 | Wiring harness | 1 | ||
| 7 | Oval-head screw | 10 | ||
| 8 | Convertible-top control module | 1 | ||
| 9 | Hexagon-head bolt | 4 | See TIGHTENING TORQUES . | |
| 10 | Holder | 2 | ||
| 11 | Hexagon-head bolt | 4 | See TIGHTENING TORQUES . | |
| 12 | Right bracket | 1 | ||
| 13 | Left bracket | 1 | ||
| 14 | Clip | 2 | Inspect and replace if necessary | |
| 15 | Hexagon-head bolt | 1 | See TIGHTENING TORQUES . | |
| 16 | Belt reel, left | 1 | ||
| 17 | Assembly key | 1 | Clip in. | |
| 18 | Clip | 2 | Inspect and replace if necessary. | |
| 19 | Holder | 1 | ||
| 20 | DME + Tiptronic control unit | 1 | ||
| 21 | Collar nuts | 2 | See TIGHTENING TORQUES . | |
| 22 | Z drive VDKD cpl. | 1 | ||
| 23 | Convertible top Z drive | 1 | ||
| 24 | Collar nuts | 4 | See TIGHTENING TORQUES . |
