Tightening torques
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

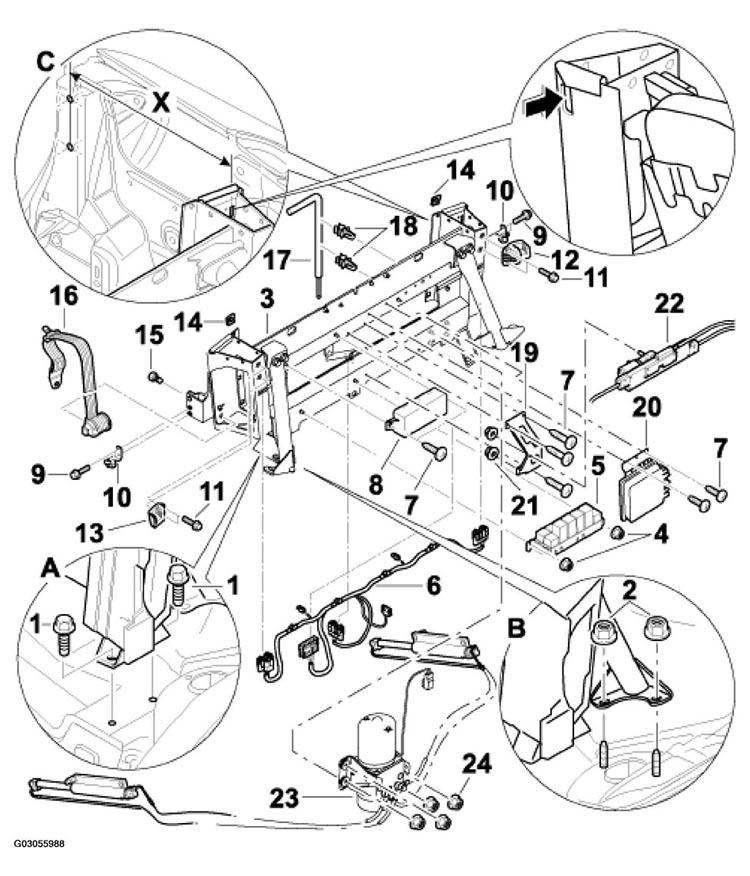

ROLL-OVER PROTECTION SYSTEM FRAME (AS OF MY 2002) TORQUE SPECIFICATIONS
| Location | Illustration | Thread | Tightening torque [Nm] (ftlb.) |
|---|---|---|---|
| Hexagon-head bolts for installing the roll-over bar | -1- . See Figure . | M10 | 65 (48.8) +/- 6 (4.5) |
| Collar nuts for installing the rear Z-supports | -2- . See Figure . | M10 | 48 (36) |
| Hexagon-head bolt for installing the holder-10- . See Figure . | -9- . See Figure . | M6 | 9.7 (7.3) |
| Hexagon-head bolt for installing the bracket on the right and left-12, 13- . See Figure . | -11- . See Figure . | M6 | 9.7 (7.3) |
| Hexagon-head bolt | -15- . See Figure . | 50 (37.5) | |
| Collar nut for installing the DME + Tiptronic control unit on the holder | -21- . See Figure . | M6 | 7 (5.3) |
| Collar nuts for installing the convertible top Z drive | -23- . See Figure . | M6 | 7 (5.3) |
| Collar nuts for installing the convertible top Z drive | -24- . See Figure . | M6 | 6 (4.5) |
