Removing rear three-point belt

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

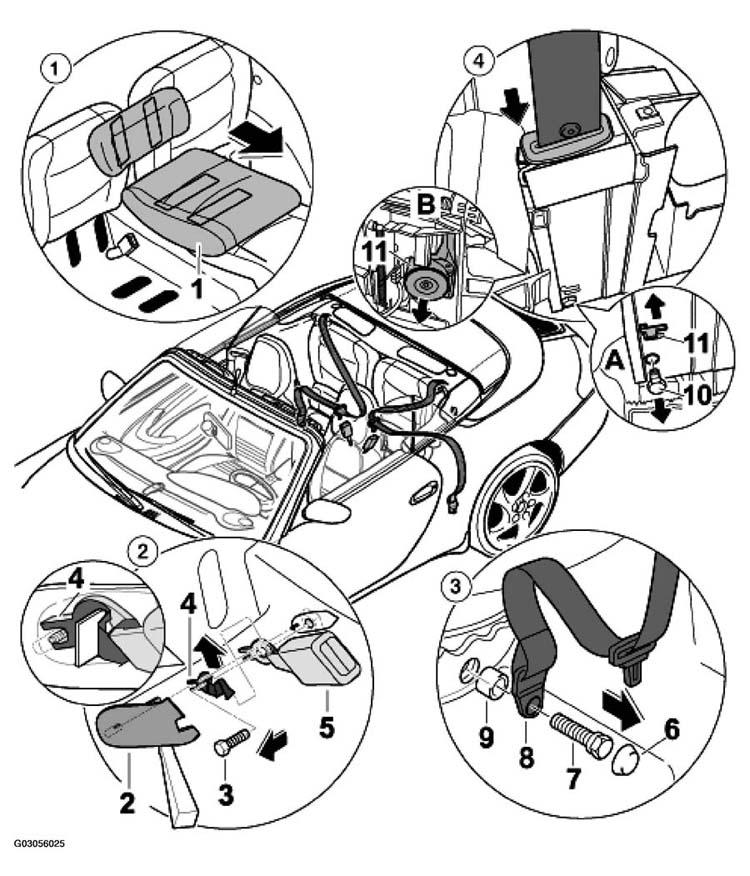

Fig 1: Removing Rear Three-Point Belt - Cabriolet
G03056025Courtesy of PORSCHE OF NORTH AMERICA, INC.
REAR THREE-POINT BELT REMOVAL PROCEDURE - CABRIOLET

No. Procedure Instructions
  Moving Cabriolet convertible top to service position Refer to REMOVING AND INSTALLING CONVERTIBLE TOP .
  Removing rear wall lining and cover See REMOVING ROLL-OVER PROTECTION SYSTEM  .
1 Removing seat cushion Pull the seat cushion -1-  . See Fig 1 .
2 Removing belt buckle Press out cover -2-3-4-5-  . See Fig 1 .
3 Removing seat belt and fitting Press out cover cap -6-7-8-9-  . See Fig 1 .
4 Removing automatic belt device Unscrew fastening screw -10-11-A-11-B-  . See Fig 1 .
