Removing roll-over protection system

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

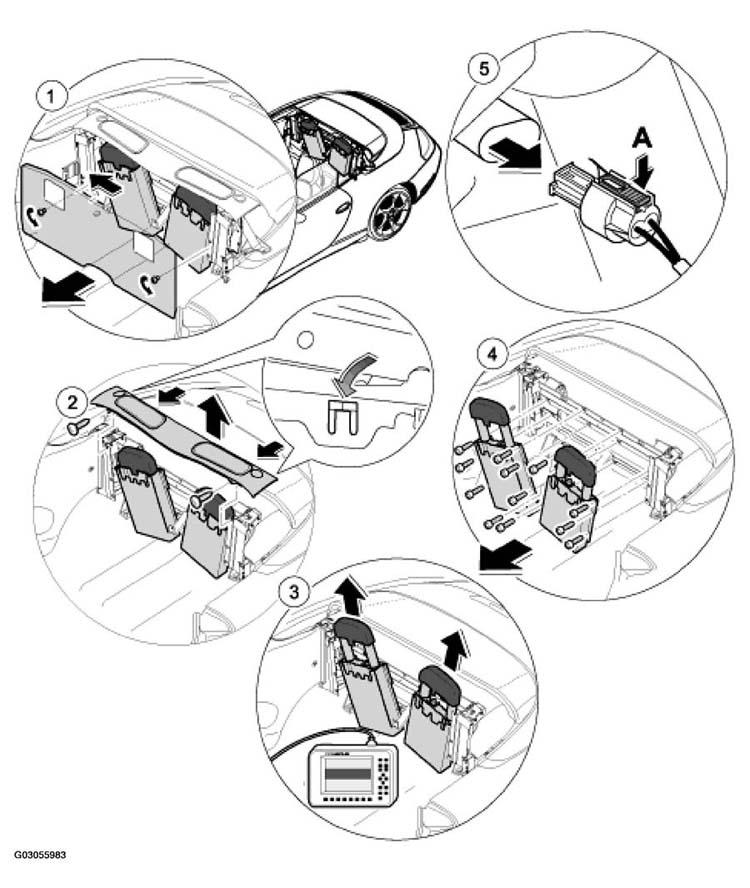

Fig 1: Removing Roll-Over Protection System

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WARNING: Danger of injury during assembly work! The roll-over bar module can be triggered.

Remove the roll-over bar modules only after the roll-over bar has been extended (triggered).

ROLL-OVER PROTECTION SYSTEM REMOVAL PROCEDURE

No.	Procedure	Instructions
1	Remove rear wall lining	Remove oval-head screws from the rear wall lining on the left and right, and detach the auxiliary frame. Remove rear wall lining.
2	Remove the cover	Unclip the cover over the roll-over protection system at the rear, unscrew the Torx screws at the front, and lift the cover up and off.
3	Trigger roll-over protection system with the Porsche System Tester	NOTE: Actuate the roll-over protection system only if: the hardtop is removed the convertible top is open the caps are removed Connect the Porsche System Tester to the diagnostic socket. Switch ignition on. Select menu item "Roll-over protection". Select menu item "Drive links" in the command line which then appears. Press the key combination described in the Tester; the roll-over protection system is triggered.
4	Unscrew hexagon socket head bolts	Undo the hexagon socket head bolts from the modules in the auxiliary frame and pull out in downward direction.
5	Disconnect the electrical plug connection	Press the electrical plug connection -arrow A- . See Fig 1 .
