Installing rear three-point belt
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
REAR THREE-POINT BELT INSTALLATION PROCEDURE - CABRIOLET
| No. | Procedure | Instructions |
|---|---|---|

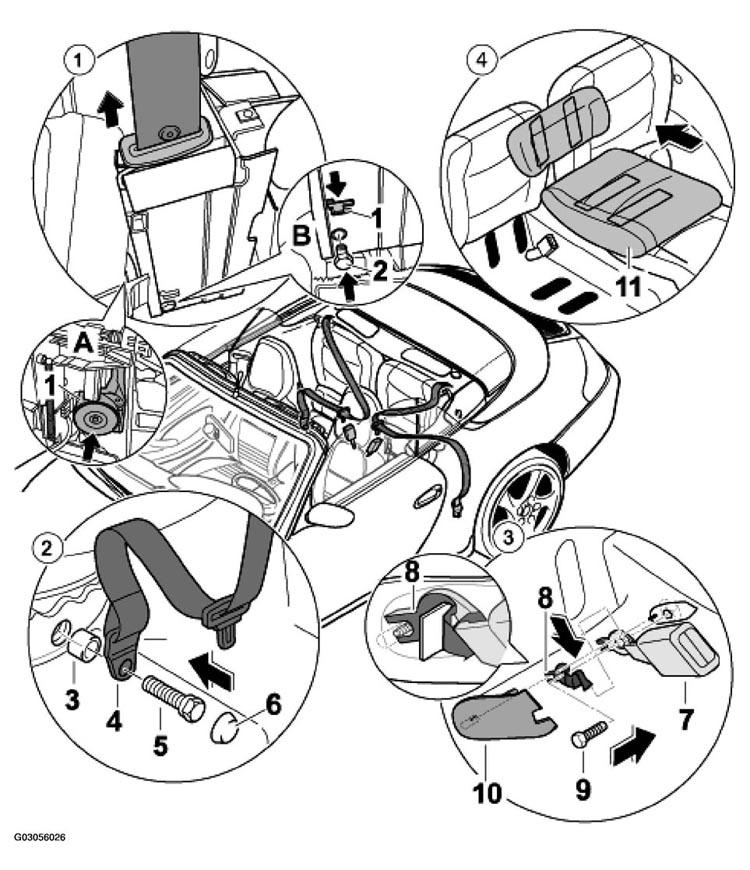

| 1 | Installing automatic belt device | Position automatic belt device -1-A-arrow-2-B- . See Fig 1 . |
| 2 | Installing seat belt with fitting | Make sure belt strap can run properly! -5-4-3-6- . Tighten fastening screw -5-4-3-6- . See Fig 1 . |
| 3 | Installing belt buckle | Screw belt buckle -7-8-9-10- . See Fig 1 . |
| 4 | Installing seat cushion | Press seat cushion -11- . See Fig 1 . |
| Installing rear wall lining and cover | See INSTALLING ROLL-OVER PROTECTION SYSTEM . |
