Installing front three-point belt

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

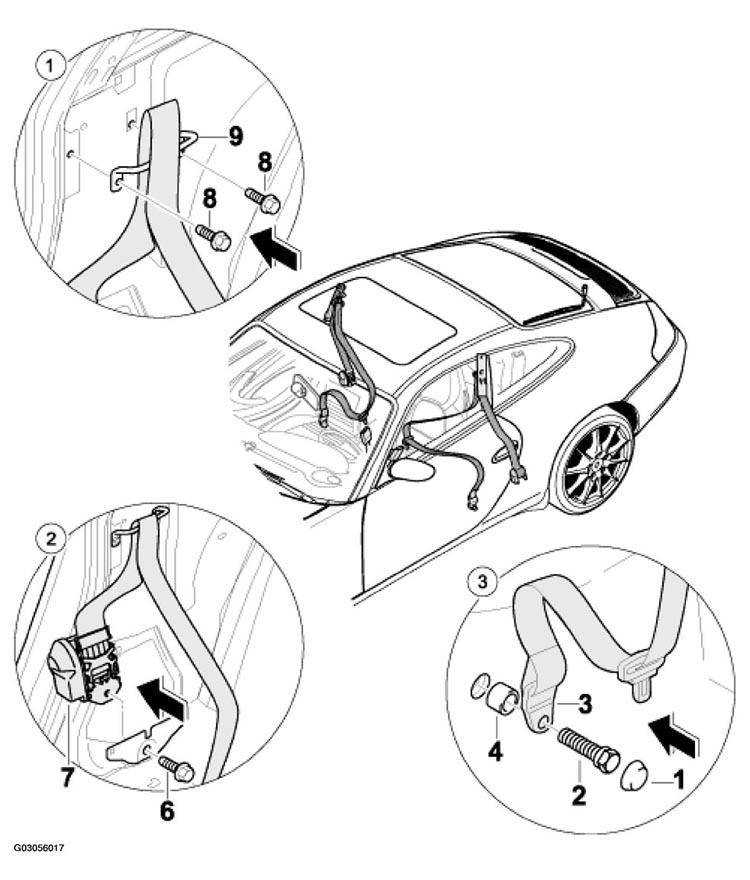

Fig 1: Installing Front Three-Point Belt

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FRONT THREE-POINT BELT INSTALLATION PROCEDURE

No.	Procedure	Instructions
	Only on vehicles with belt tensioner, installing belt tensioner	See INSTALLING BELT TENSIONER .
1	Installing deflector	Position the deflector and the seat belt on the inner side section and screw tight with the fastening screws -8- . See Fig 1 .
2	Installing automatic belt device	Position automatic belt device -7-arrow- . See Fig 1 .
3	Removing seat belt and fitting	Make sure that the belt strap can run properly! -2-3-5- . See Fig 1 . Screw the fastening screw -2-3-5- . See Fig 1 .
	Removing B-pillar	Refer to REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS, - AS OF MY 1997 .
	Removing side-panel lining	Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 .
