Installing belt tensioner

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The belt tensioner may only be installed with the ground terminal of the vehicle battery disconnected.
The vehicle battery may only be re-connected after the re-installation of the belt has been completed.

See SAFETY REGULATIONS FOR VEHICLES WITH AIRBAG AND BELT TENSIONER .

Install belt tensioner. Observe the direction of travel -3- . See Fig 1 .
Screw fastening screw -B- , tightening torque 50 Nm (37 ftlb.). See Fig 1 .
Insert electrical plug -A- in the belt tensioner. See Fig 1 .

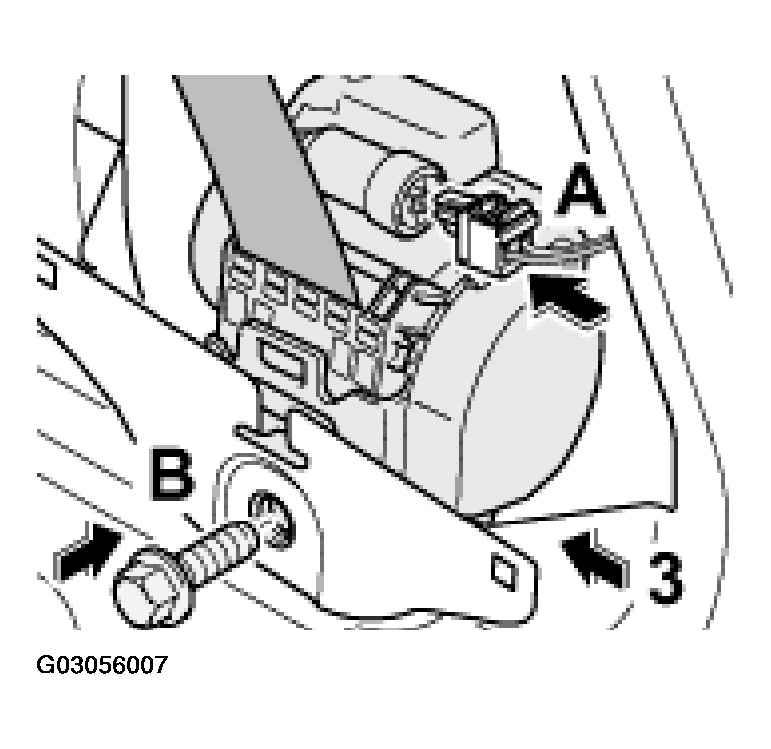

Fig 1: Installing Belt Tensioner, Screwing Fastening Screw & Inserting Electrical Plug

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Push in fuse -2- with e.g. a screwdriver in the -direction of travel- until the fuse engages. See Fig 2 .
By gently pulling on the belt -arrow 1- , check the winding ability of the belt strap. See Fig 2 .

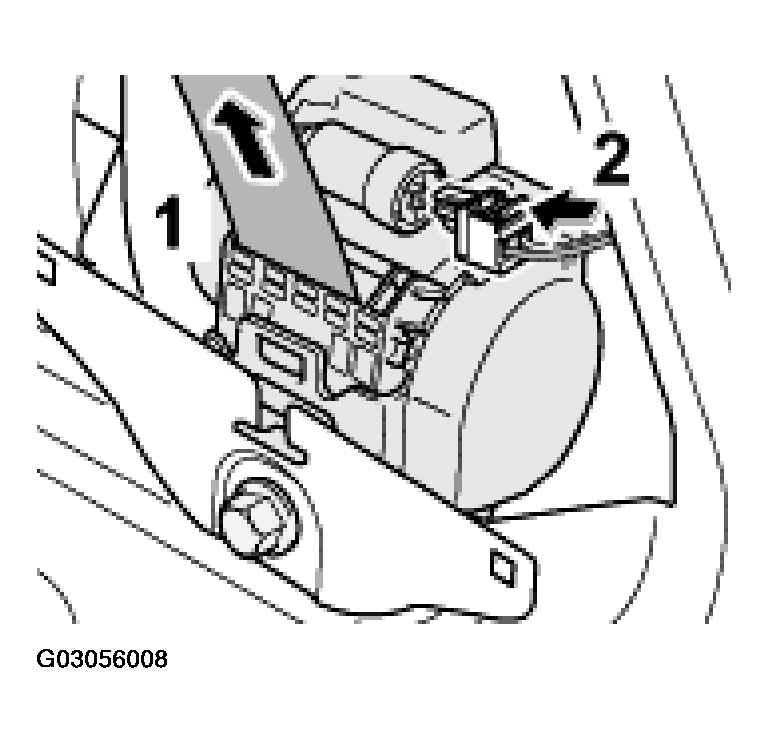

Fig 2: Engaging Fuse & Pulling On Belt

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Read out the fault memory with the Porsche System Tester.

See REMOVING AND INSTALLING FRONT THREE-POINT BELT .
