Removing front three-point belt

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

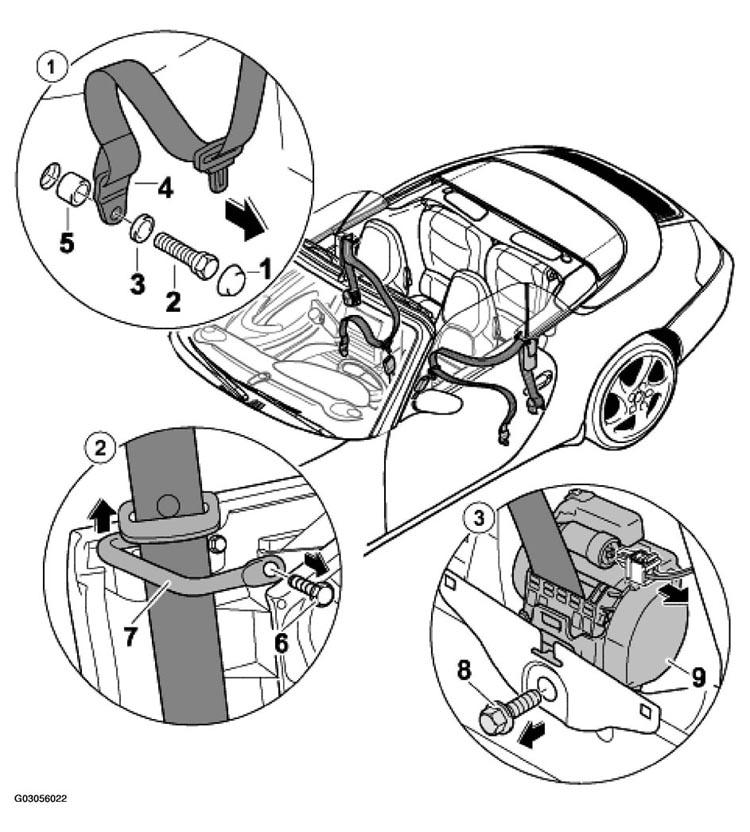

Fig 1: Removing Front Three-Point Belt - Cabriolet
G03056022Courtesy of PORSCHE OF NORTH AMERICA, INC.
FRONT THREE-POINT BELT REMOVAL PROCEDURE - CABRIOLET

No. Procedure Instructions
1 Removing seat belt and fitting Press out cover cap -1-2-4-5-  . See Fig 1 .
  Removing side-panel lining Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 .
2 Removing deflector Unscrew fastening screws -6-7-  . See Fig 1 .
  Removing belt tensioner, only on vehicles with belt tensioner See REMOVING BELT TENSIONER  .
3 Removing automatic belt device Unscrew fastening screw -6-9-  . See Fig 1 .
