Installing front three-point belt
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
FRONT THREE-POINT BELT INSTALLATION PROCEDURE - CABRIOLET
| No. | Procedure | Instructions |
|---|---|---|
| Only on vehicles with belt tensioner, installing belt tensioner | See INSTALLING BELT TENSIONER . | |

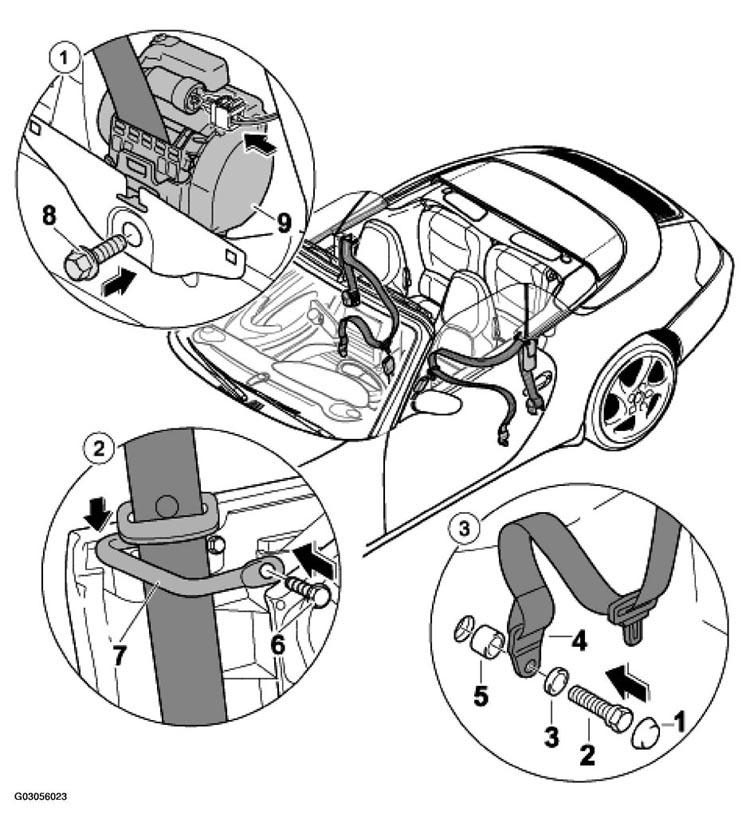

| 1 | Installing automatic belt device | Position automatic belt device -9-arrow-8- . See Fig 1 . |
| 2 | Installing deflector | Position deflector -7-6- . See Fig 1 . |
| Installing side-panel lining | Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 . | |
| 3 | Installing seat belt and fitting | Make sure that the belt strap can run properly! -2-3-5-1- . See Fig 1 . Tighten fastening screw -2-3-5-1- . See Fig 1 . |
