Removing control module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove ignition key.
  2. Disconnect the battery and cover terminal or battery.
  3. Slightly loosen centre console and push forwards a little. See REMOVING AND INSTALLING CENTRE CONSOLE .
  4. Remove the two rear belt buckles and take out the seat wells.
  5. Undo the trim of the seat wells from the carpeting and lift up in the middle.
  6. Using a support tool, support the trim and unscrew and remove the plastic screw from the control module cover.

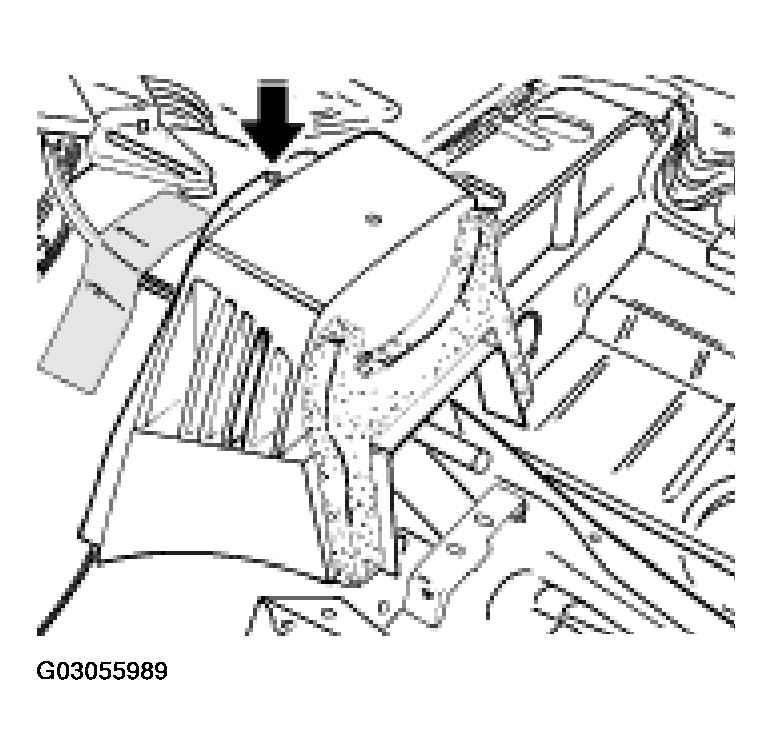

    Fig 1: Removing Plastic Screw From Control Module Cover
    G03055989Courtesy of PORSCHE OF NORTH AMERICA, INC.
  7. Disconnect the electrical plug connection. Undo the shear-off nuts using socket wrench insert and remove the roll-over protection control module.

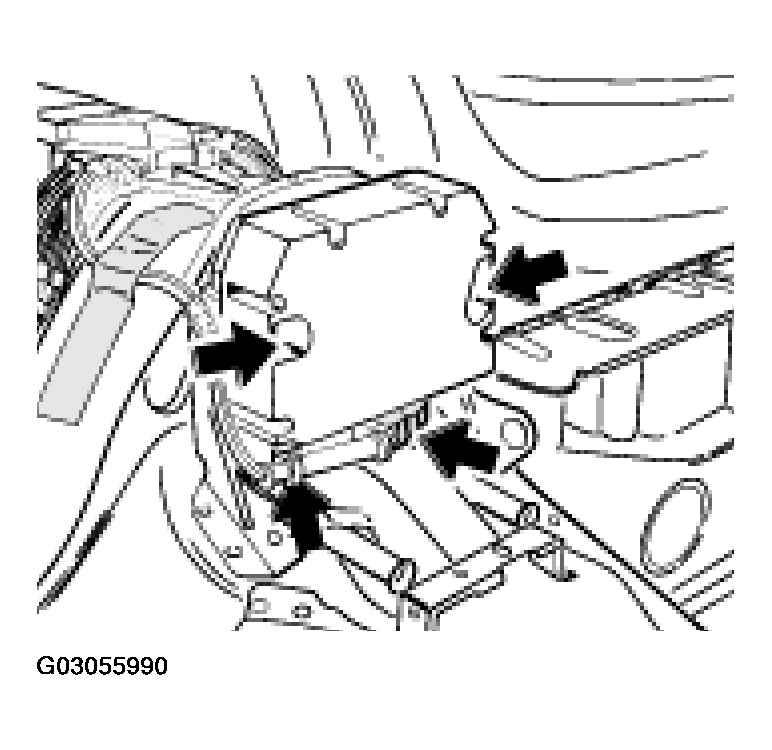

    Fig 2: Removing Roll-Over Protection Control Module Nuts
    G03055990Courtesy of PORSCHE OF NORTH AMERICA, INC.
