Removing and installing the viscous clutch: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, observing the following points:

Insert supporting disc and fit snap ring with special tool 9638.

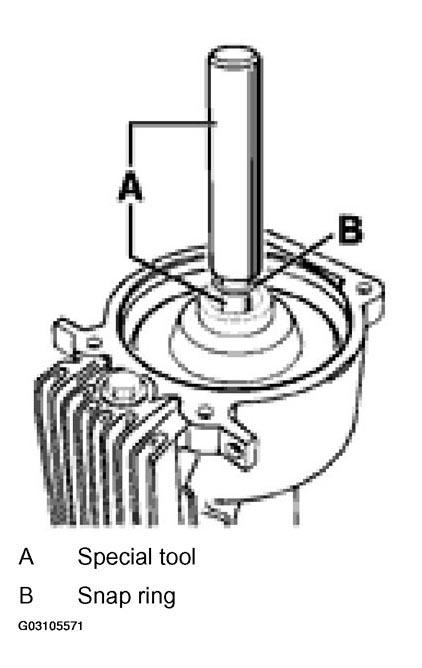

Fig 1: Installing Supporting Disc & Snap Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Always replace O-ring for long-neck pipe and coat with Vaseline.
Uniformly tighten fastening screws for long-neck pipe in diagonally opposite sequence.
Fill in oil for final drive (see Changing and checking transmission oil in final drive ).
