Changing and checking transmission oil in final drive

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Filling capacity: 0.9 L

NOTE: Use only oils approved by Porsche. See Parts Catalogue.

NOTE: There is no oil drain plug on the final drive.

Unscrew the oil filler plug and remove oil by suction using a suitable hand pump while the transmission is warm from operation.

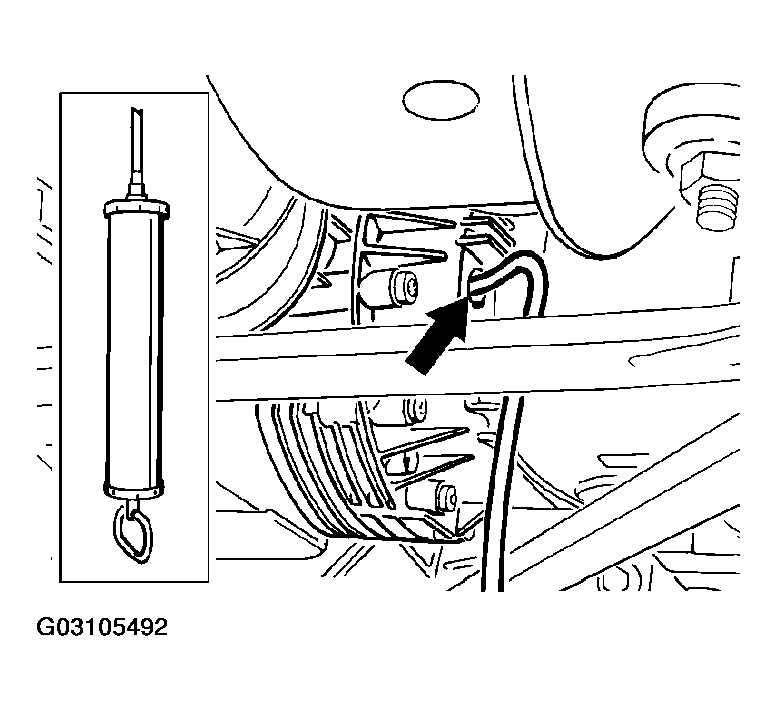

Fig 1: Removing Final Drive Oil Filler Plug
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fill with 0.9 L transmission oil using special tool V.A.G 1924.
NOTE: Filling must be carried out very slowly because there is a baffle plate in the cover of the final drive.
Replace sealing ring for oil filler plug and tighten to 30 Nm (22 ftlb.).
