Removing and installing sealing ring for short flanged shaft: Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

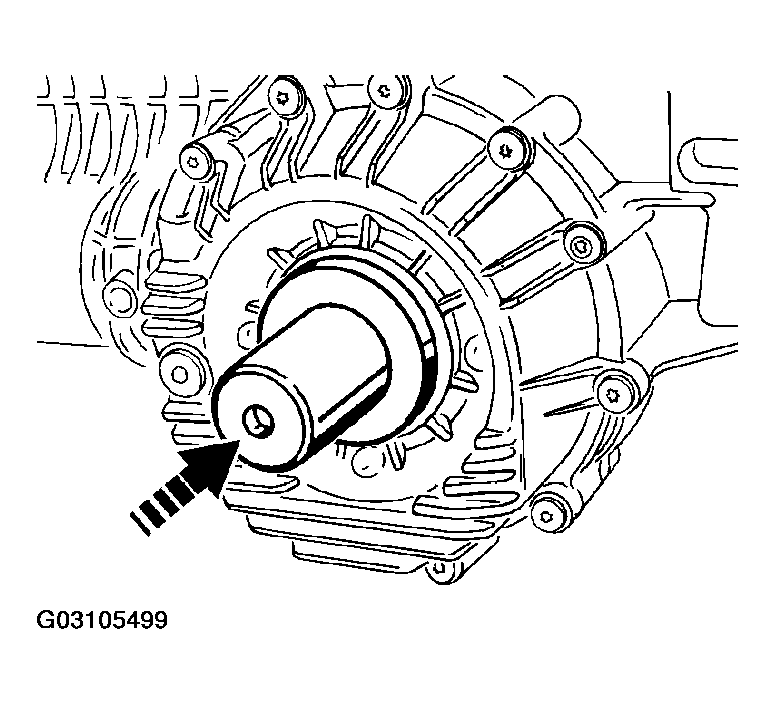

- Thinly coat sealing lip and outer circumference of sealing ring with Vaseline and insert sealing ring with special tool 3384 up to the stop.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE: The sealing ring must fit in the housing at the same depth all round. - Check the transmission oil in the final drive and top up if necessary (see Changing and checking transmission oil in final drive ).
