Removing and installing sealing ring for long flanged shaft: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

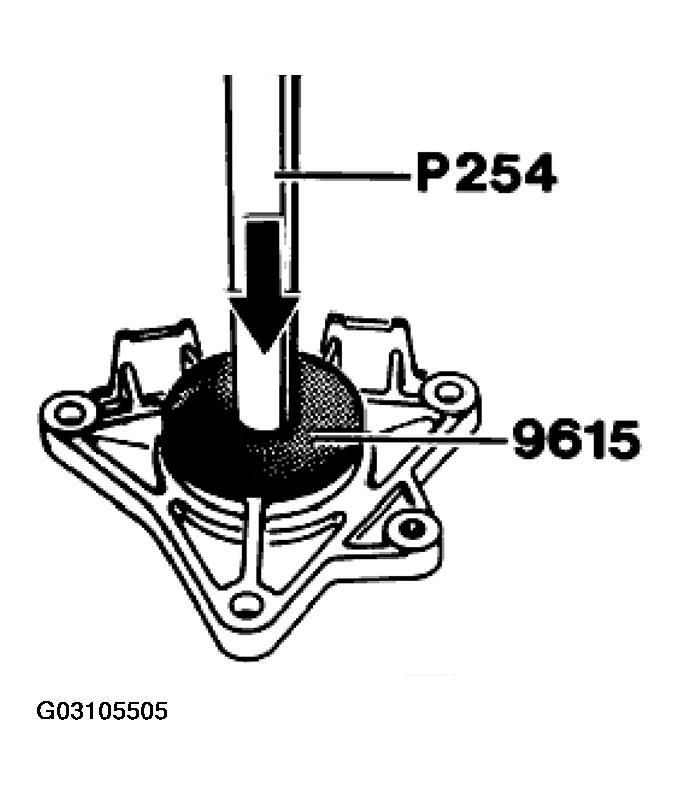

Push new sealing ring up to the stop with special tool 9615.

Fig 1: Installing Sealing Ring With Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.

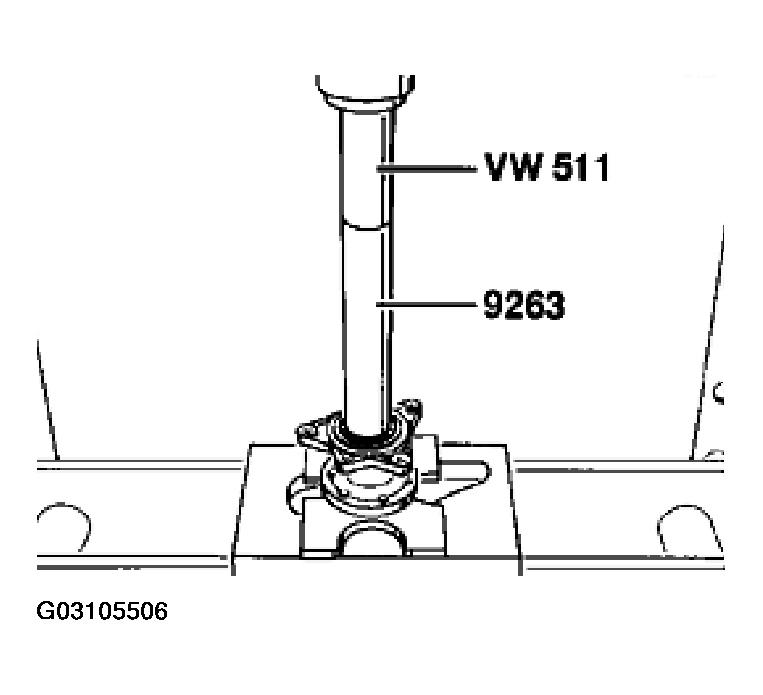

Press mounting saddle with ball bearing onto flanged shaft.

Fig 2: Pressing Mounting Saddle With Ball Bearing Onto Long Flanged Shaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Insert snap ring.
Install flanged shaft, check the transmission oil in the final drive and top up if necessary (see Changing and checking transmission oil in final drive ).
