Removing and installing shiftlock solenoid: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove centre console (refer to REMOVING AND INSTALLING CENTRE CONSOLE (FRONT SECTION) ).
  2. Remove and install selector console (refer to Removing and installing selector support  ).
  3. Remove cover plate on selector lever support.
  4. Pull off cable on manual switch, unclip holder for plug connection and remove cable from the cable guides.

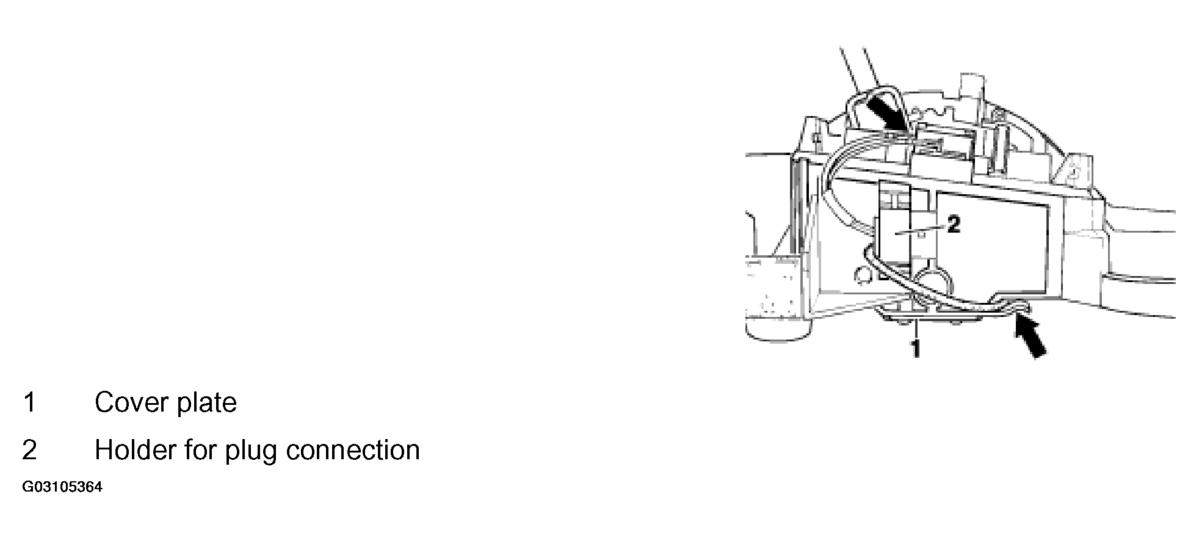

    Fig 1: Pulling Off Cable On Manual Switch & Unclipping Holder For Plug Connection
    G03105364Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Pull solenoid holding clip only far enough away to permit the solenoid can be removed. Do not overstretch the holding clip.

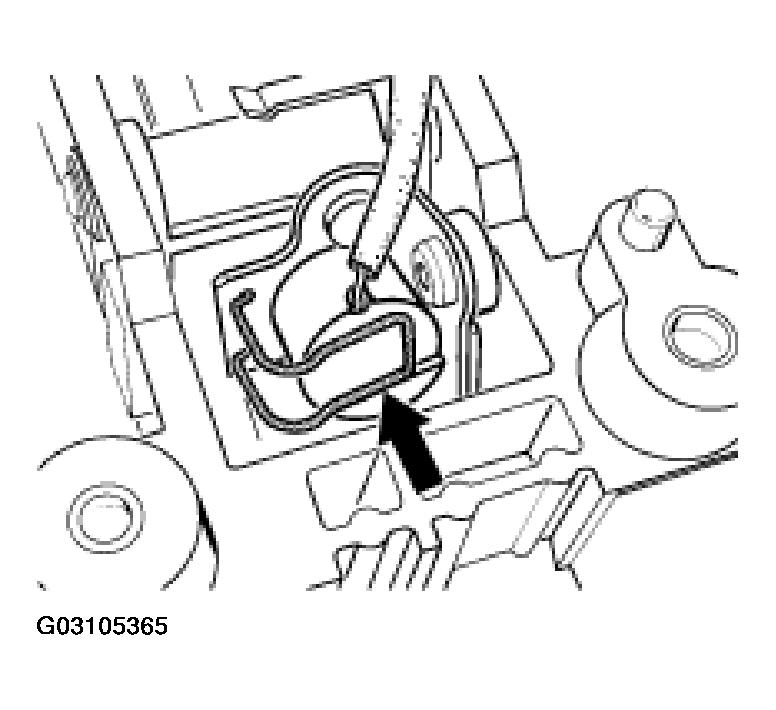

    Fig 2: Pulling Solenoid Holding Clip
    G03105365Courtesy of PORSCHE OF NORTH AMERICA, INC.
