Removing and installing selector lever cable: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The selector cable must not be excessively bent or kinked.

Move selector lever to "P" position.
Remove selector knob (refer to Removing and installing selector knob ).
Remove centre console (refer to REMOVING AND INSTALLING CENTRE CONSOLE (FRONT SECTION) ).
Detach selector lever cable at shift console.
Slide the locking sleeve of the adjuster (1) forward and turn it clockwise to removal position. See Fig 1 .

Press the retaining clip (2) together and carefully pull the cable upward out of the support bracket. See Fig 1 .

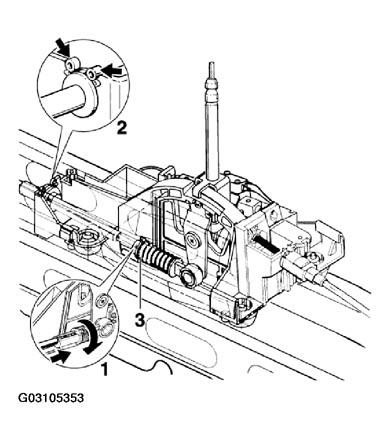

Fig 1: Sliding Locking Sleeve Of Adjuster Forward & Pressing Retaining Clip Together
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove parking brake console.
Remove underbody panel (middle and rear).
Lever off cable on transmission lever using a commercially available removal tool .

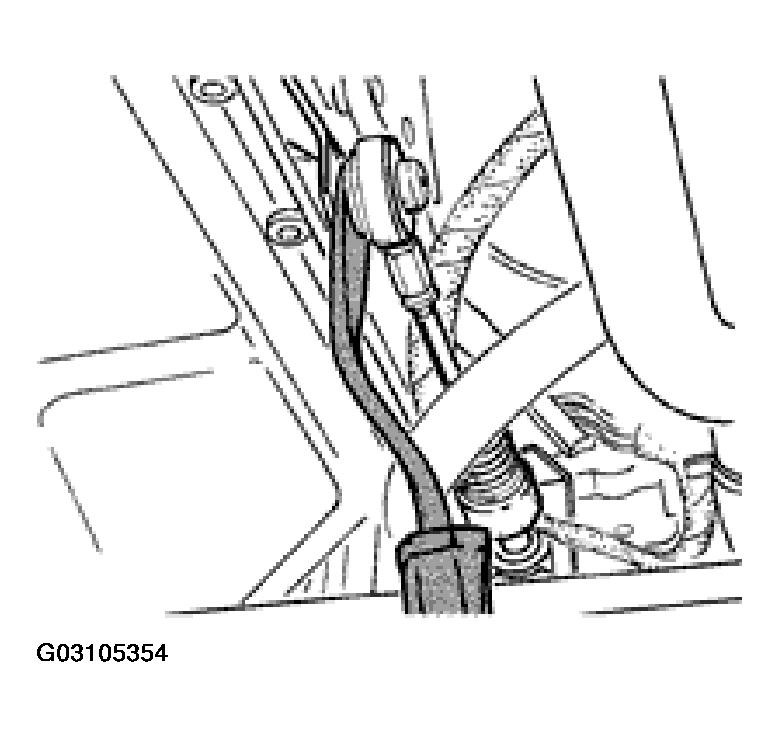

Fig 2: Levering Off Cable On Transmission Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disengage cable at support bracket.

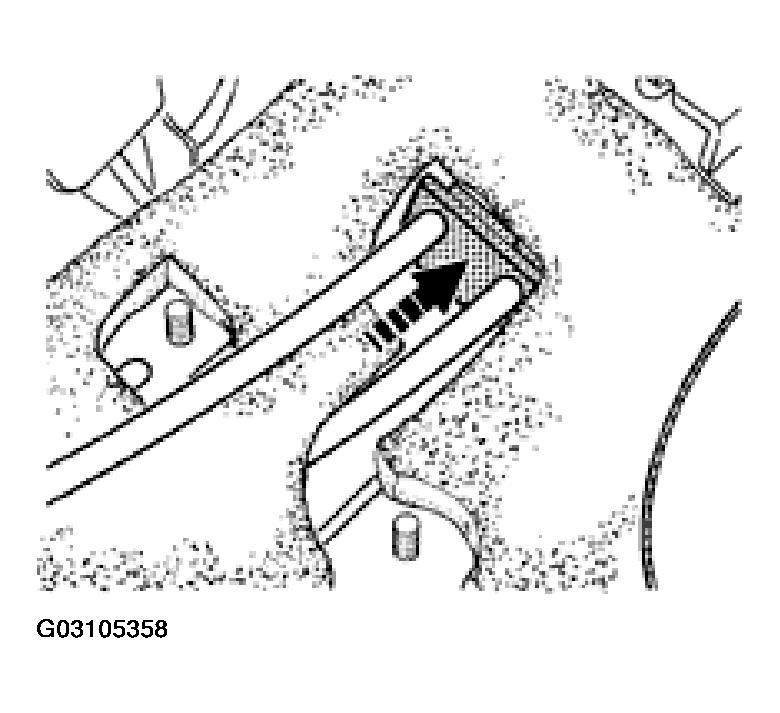

Fig 3: Disengaging Cable At Support Bracket
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove cross member.
Place transmission jack under the transmission and remove transmission support.

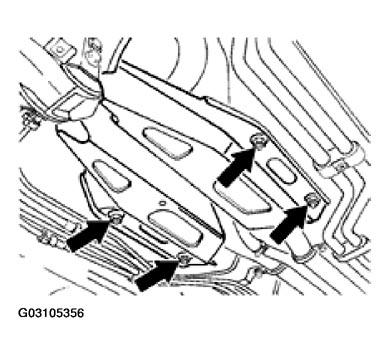

Fig 4: Removing Transmission Support (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

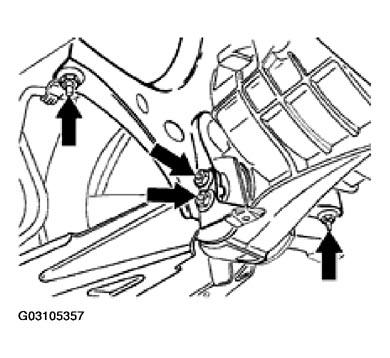

Fig 5: Removing Transmission Support (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

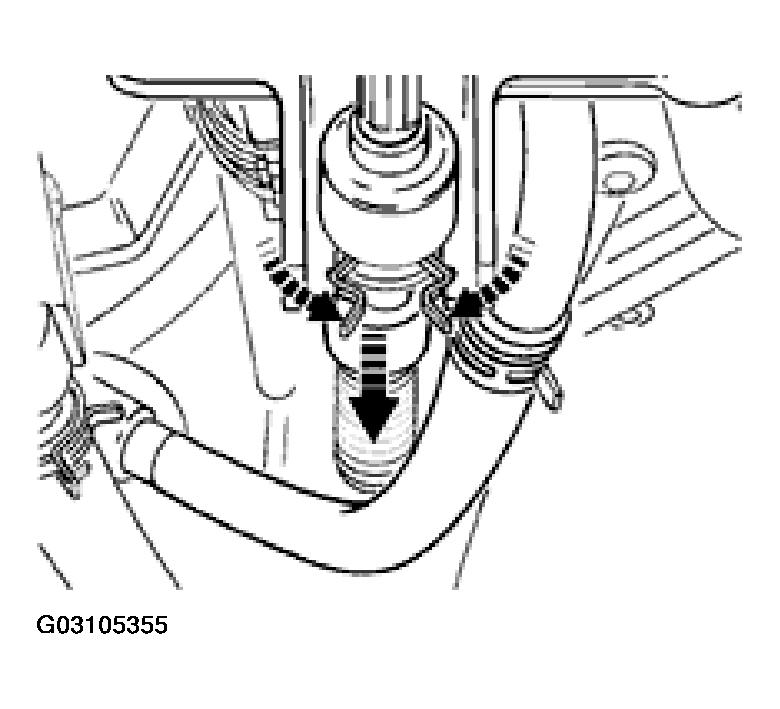

From the passenger compartment, press rubber sleeve out to the rear and pull B+ wire out of the slotted grommet.

Fig 6: Pressing Rubber Sleeve Out & Pulling B+ Wire Out Of Slotted Grommet
Courtesy of PORSCHE OF NORTH AMERICA, INC.
