Removing selector support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removing selector knob. See REMOVING AND INSTALLING SELECTOR KNOB (AS OF MY 2002)  .
  2. Remove centre console. Refer to REMOVING AND INSTALLING CENTRE CONSOLE (FRONT SECTION) .
  3. Press together the retaining clip on the keylock cable -A-  and lift adjuster -B-  up out of the support bracket (see enlarged view 1 in Fig 1 ).

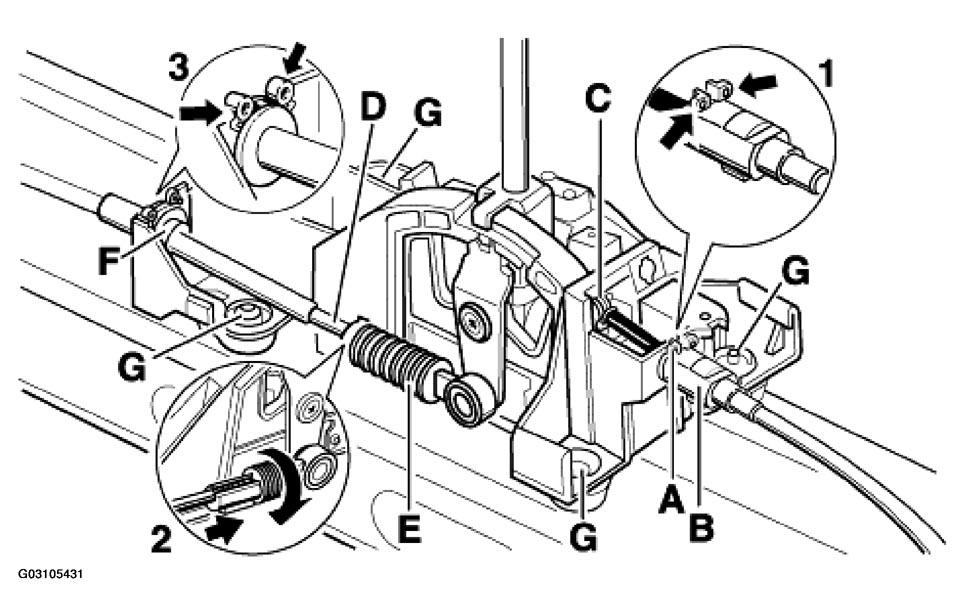

    Fig 1: Identifying Selector Console Components (As Of MY 2002)
    G03105431Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Disengage cable nipple -C-  . See Fig 1 .
  5. Disengage selector lever cable -D-  on the selector support. To do this, slide the locking sleeve -E-  forward as far as it will go and turn it clockwise to removal position (see enlarged view 2 in Fig 1 ).
  6. Carefully disengage support bracket sleeve -F-  upward out of the selector support. Unlock the support bracket sleeves by pressing in both plastic clips (see enlarged view 3). See Fig 1 .
  7. Unscrew fastening nuts -G-  for selector support. See Fig 1 .
  8. Disconnect electrical plug connections -A-  and remove the selector support.

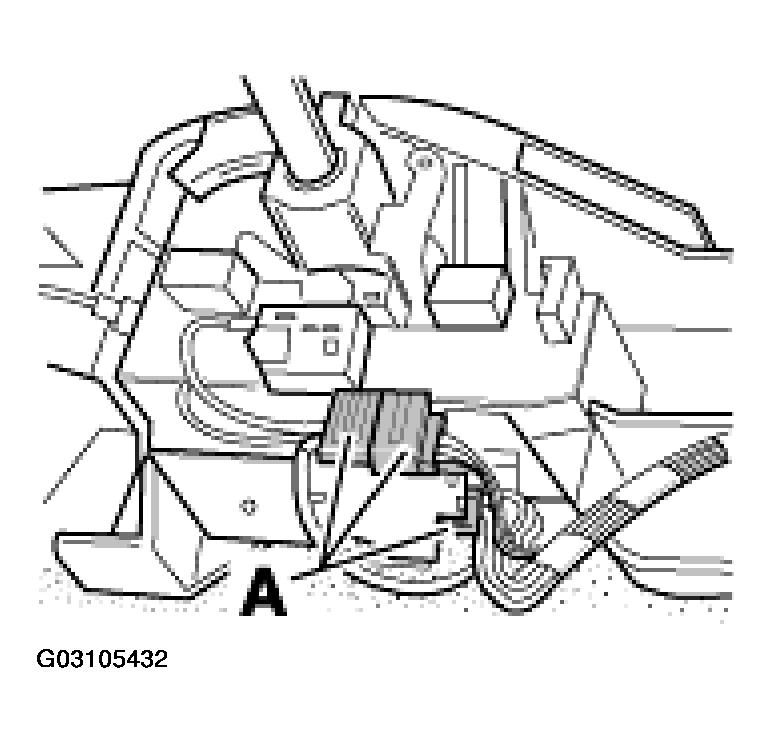

    Fig 2: Disconnecting Electrical Plug Connections At Selector Support (As Of MY 2002)
    G03105432Courtesy of PORSCHE OF NORTH AMERICA, INC.
