Removing transmission

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine-transmission unit. Refer to REMOVING AND INSTALLING ENGINE (VEHICLE WITH TIPTRONIC TRANSMISSION) .
  2. Detach coolant hoses on the transmission.

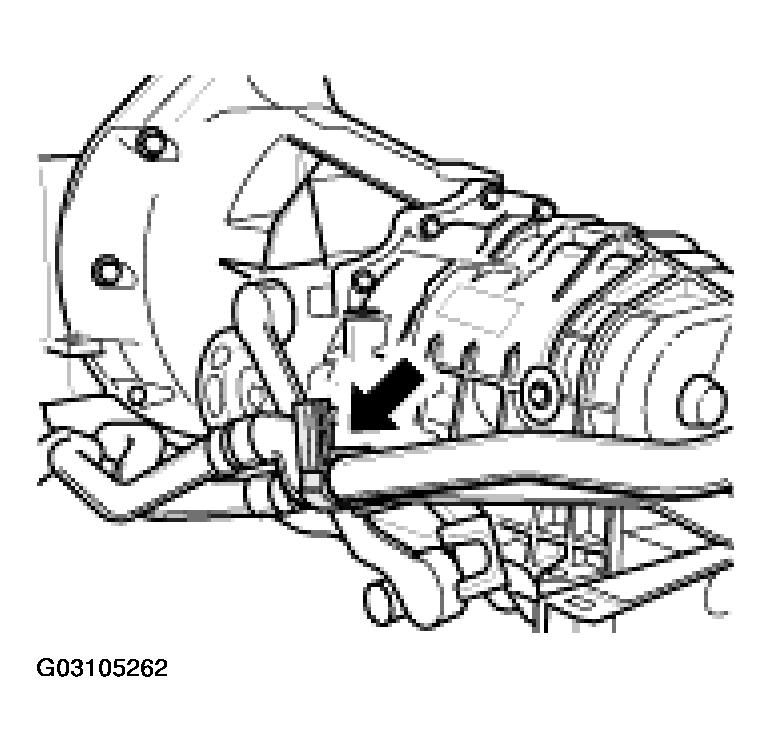

    Fig 1: Detaching Coolant Hoses On Transmission
    G03105262Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Unscrew the fastening screws between the engine and transmission and separate the transmission from the engine.
