Removing the torque converter

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove engine-transmission unit. Refer to REMOVING AND INSTALLING ENGINE AS FROM MY 02 (TIPTRONIC TRANSMISSION) and REMOVING AND REFITTING THE TRANSMISSION (MY 2002) .
  2. With transmission in horizontal position, remove the converter. Use two M8 x 120 screws for this purpose.

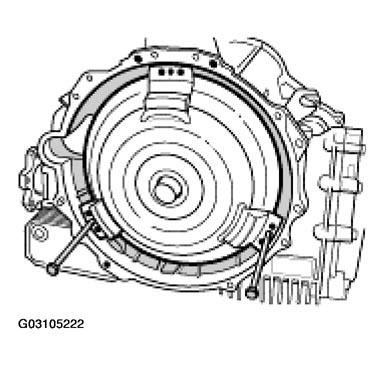

    Fig 1: Removing Torque Converter Using M8 x 120 Screws (As Of MY 2002)
    G03105222Courtesy of PORSCHE OF NORTH AMERICA, INC.
