Removing Power Window Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

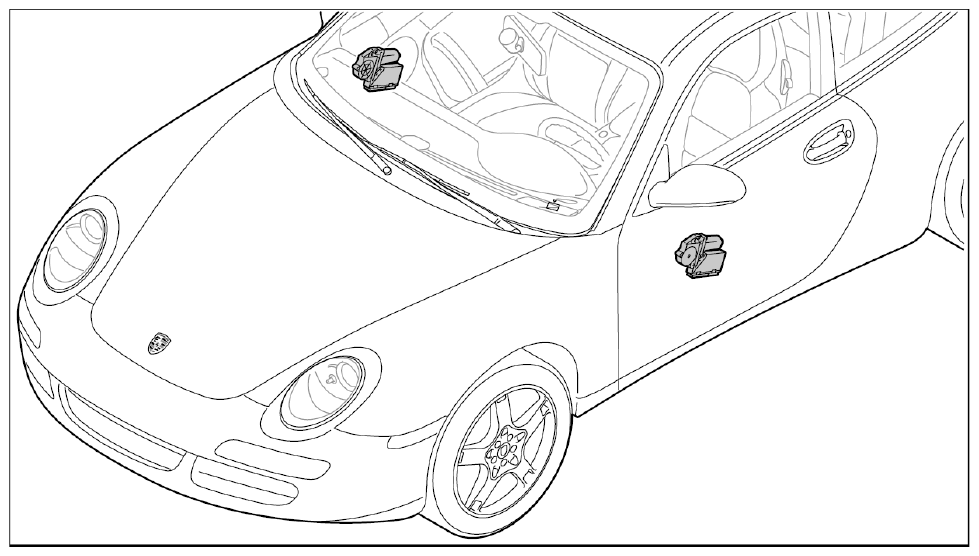

Fig 1: Identifying Position Power Window Motor
G09826602Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. If a new power window motor is to be installed, read out the values first. → Installing Power Window Motor

    Switch off ignition and remove ignition key.

    Information

    On "newer" power window motors, the wire harness from the door wiring harness is clipped in on the power window motor.

    • Unclip wire harness at the clip, underneath the power window motor using a screwdriver.

    A new connector concept is used on "newer" power window motors. Procedure:

    • Release (pull out) the red lock on the connector using a screwdriver.
    • Release the locking lug underneath and pull the connector off the power window motor.
  2. Unlock electric connector -a-  and disconnect from power window motor.

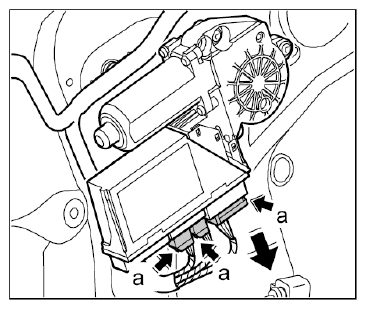

    Fig 2: Removing Connector
    G09826603Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew the three fastening screws -1-  .

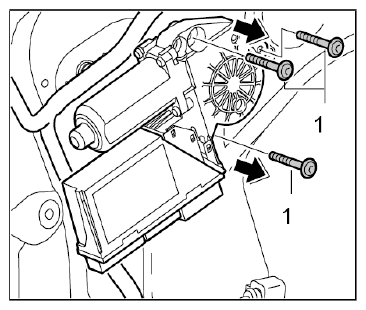

    Fig 3: Removing Fastening Screws
    G09826604Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull the power window motor out of the teeth.
