Installing Power Window Motor
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information

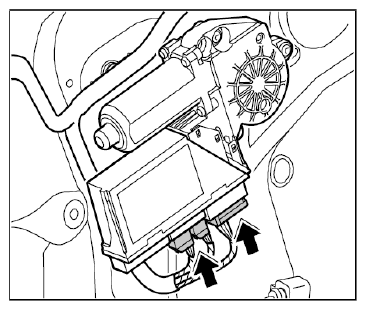

On "newer" power window motors, the wire harness from the door wiring harness is clipped in on the power window motor.
- Clip in wire harness on the power window motor.
- Position power window motor and push into the teeth.

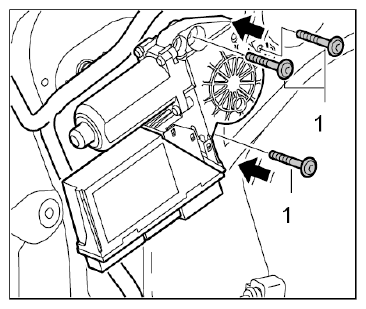

- Screw in the three fastening screws. → Tightening torque: 3 Nm (2 ftlb.)
- Press in electric connector on power window motor until it engages securely.
Information
The end positions of the power windows are deleted from the control unit when the electric connectors are disconnected and connected.
- Operate rocker switch and fully close window once.
- Actuate rocker switch to close again. The upper end position of the side window is stored.
- Operate rocker switch and fully open window once.
- Actuate rocker switch to open again. The lower end position of the side window is stored.
- If a new power window motor has been installed (door control unit), this must be programmed/coded.
→ Programming Power Window Motor (Door Control Unit) → Coding Power Window Motor (Door Control Unit) .
