Information

The precondition for exact adjustment of the front door window is that the door is perfectly adjusted and correctly locked in the lock peg in accordance with the joining plan. → 5000IN DIAGRAM - BODY GAP DIMENSIONS

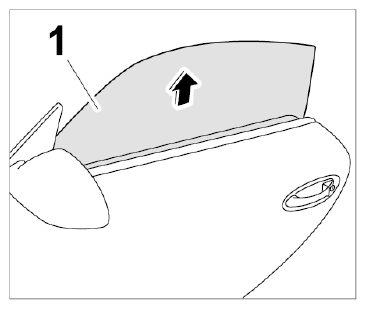

Close the front door window -1- fully -arrow- .

Fig 1: Raising Front Door Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove door trim panel. → REMOVING DOOR PANEL

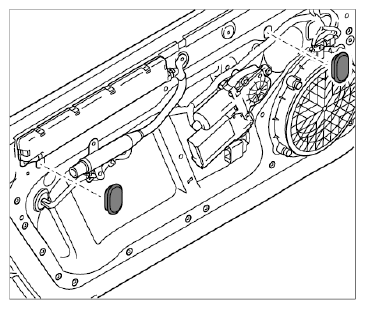

Pull off rubber sleeves on the door sub-frame at the top left and right.

Fig 2: Pulling Off Rubber Sleeves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

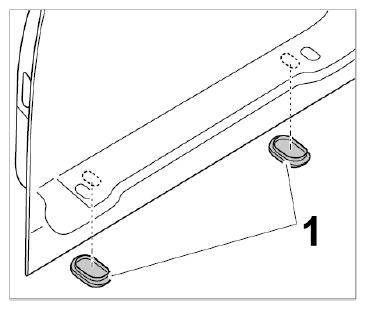

Pull off rubber sleeves -1- on the door at the bottom left and right.

Fig 3: Identifying Rubber Sleeves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
