Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install cross member -A- and diagonal braces -B- .

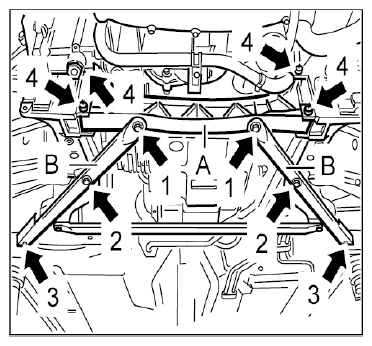

Fig 1: Locating Running Gear Diagonal Braces

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Diagonal brace to cross member	In Fig 1	Tightening torque	110 Nm (ftlb.) (81.5)	-	-
Diagonal brace to side section	In Fig 1	Tightening torque	23 Nm (ftlb.) (17)	-	-
Diagonal brace to body	In Fig 1	Tightening torque	65 Nm (ftlb.) (48)	-	-
Cross member to side section	In Fig 1	Tightening torque	110 Nm (ftlb.) (81.5)	-	-

Fit stabilizer.

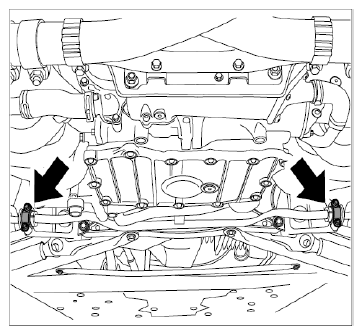

Fig 2: Locating Stabilizer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Stabilizer to side section	-	Tightening torque	23 Nm (ftlb.) (17)	-	-

Bleed the cooling system. → WM 193817 DRAINING AND FILLING IN COOLANT (INCLUDES BLEEDING THE SYSTEM)
Check and if necessary, top up the ATF. → 370235 CHECKING AND TOPPING UP THE ATF
Fit the underbody panel. → 519419 REMOVING AND INSTALLING REAR COVER
Lower the vehicle.
