Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle at the prescribed jacking points. → 400000 LIFTING THE VEHICLE
Remove the underbody panels. → 519419 REMOVING AND INSTALLING REAR TRIM
Loosen stabilizer and swivel it downward.

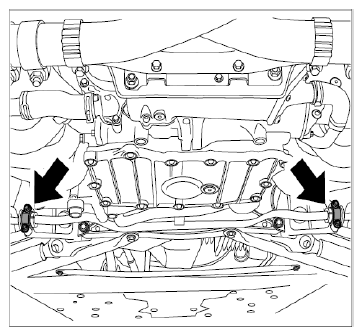

Fig 1: Locating Stabilizer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove diagonal braces -B- and cross member -A- .

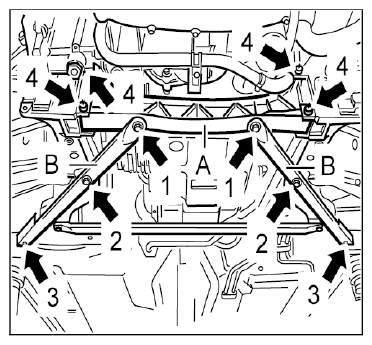

Fig 2: Locating Running Gear Diagonal Braces
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
