Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

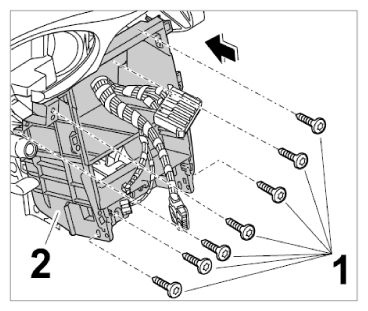

  1. Position unit carrier -2-  and secure in place with the fastening screws -1-  . → Tightening torque: 3 Nm (2 ftlb.)
    Fig 1: Installing Unit Carrier
    G09827241Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install trim panel under dashboard at the driver's side. → 701919 REMOVING AND INSTALLING TRIM UNDER DASHBOARD
  3. Install switch console. → 962719 REMOVING AND INSTALLING SWITCH CONSOLE
  4. Install air-conditioning system regulator. → 870219 REMOVING AND INSTALLING AIR CONDITIONING CONTROL
  5. Install PCM display and operator control unit. → 911019 REMOVING AND INSTALLING PCM DISPLAY AND CONTROL UNIT
  6. Install glove box. → 681519 REMOVING AND INSTALLING GLOVE COMPARTMENT
  7. Install triggering unit for airbag. → Installing Triggering Unit
