Installing Triggering Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

If a new component (e.g. sensor, airbag control unit, airbag unit) of the airbag system has to be installed, the new component will be supplied with a barcode sticker (tear-off label).

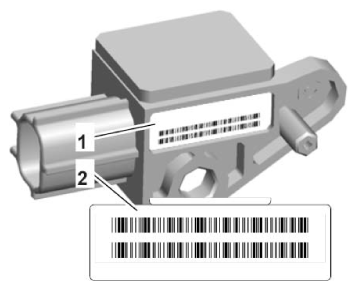

Fig 1: Locating Tear-Off Label On Airbag Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tear off the tear-off label -2- on the new component -1- and stick it in the Warranty and Maintenance booklet under the heading Proof of airbag system check/component replacement.

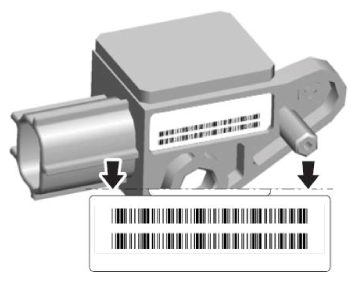

Fig 2: Identifying Tear-Off Label
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The replacement date and current mileage must be documented and the booklet must be stamped with the Centre's stamp.

Position the triggering unit, slide the three ground straps -2- onto the left fastening bolts and secure them with the three fastening nuts -1- . → Tightening torque: 8 Nm (6 ftlb.)

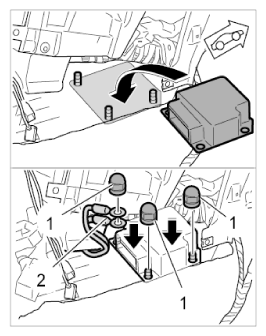

Fig 3: Installing Triggering Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect electric plug and lock it until the lock engages.

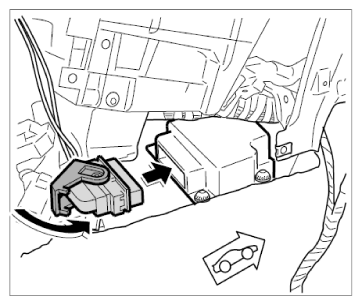

Fig 4: Connecting Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
If the triggering unit is new, lock the airbag triggering unit using PIWIS Tester II 9818 . → Coding Triggering Unit
