Removing Base Plate Of Roof Transport System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

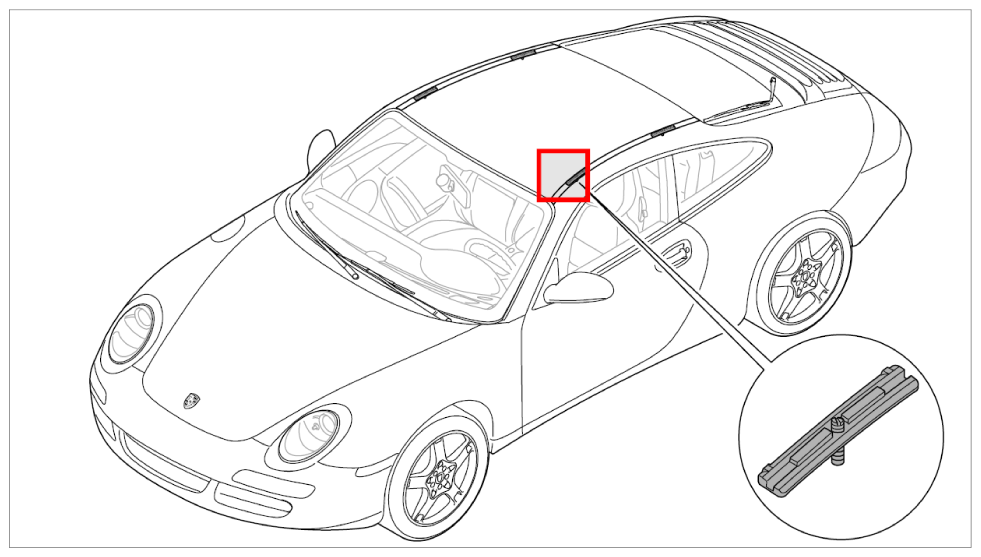

Fig 1: Identifying Base Plate For Roof Transport System Position
G09827066Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove roof joint cover strip. → Removing Roof Joint Cover Strip
  2. Remove A-pillar trim. → REMOVING A-PILLAR TRIM
  3. Remove C-pillar trim panel. → REMOVING C-PILLAR TRIM
  4. Disengage metal strut of roof liner -1-  from plastic clips -2-  .

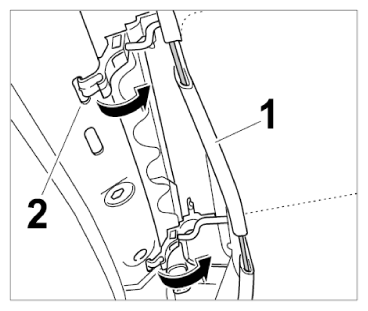

    Fig 2: Disengaging Metal Strut
    G09827067Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Unscrew fastening nut -1-  from the inside and remove base plate -2-  from roof channel.
  6. Remove residual adhesive -3-  and clean contact surface of base plate -2-  .

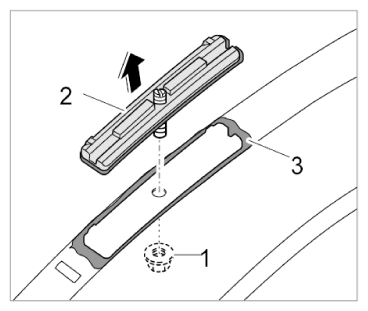

    7. Fig 3: Installing Base Plate Of Roof Transport System
    G09827068Courtesy of PORSCHE CARS NORTH AMERICA, INC.
