Installing Floor Front Section

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit the floor front section to the body.
1. 1.1. Place the floor front section against the body and secure to the straightening set.
Information

Determine the position of the new part and secure with tensioning clamps.

When butt welding body sheet panels with a sheet thickness of > 1.5 mm, there must be a welding slit width s = 1 x sheet thickness to guarantee the required welding quality (welding through).

Weld in floor front section.

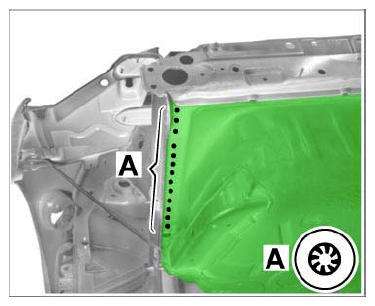

2.1. Plug-weld the floor front section in area -A- to the right side member using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Weld in floor front section.

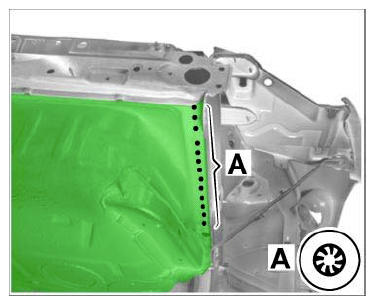

3.1. Plug-weld the floor front section in area -A- to the left side member using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Weld in floor front section.

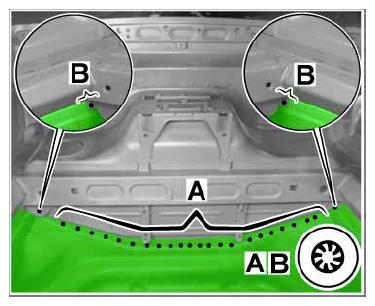

4.1. Plug-weld the floor front section in areas -A- and -B- to the front panel using inert gas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Weld in floor front section.

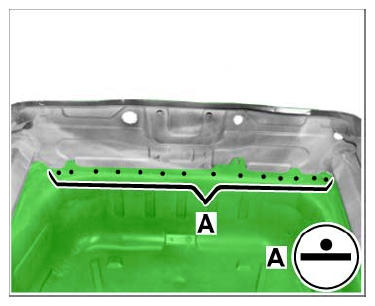

5.1. Resistance spot-weld floor front section in area -A- to the front closing panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
