Subsequent Work For Carbon Canister

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. USA version:  Disconnect cable plug from CD changer.
  2. Engage support together with CD changer on the plenum panel by means of the retaining clips -Arrows-  .

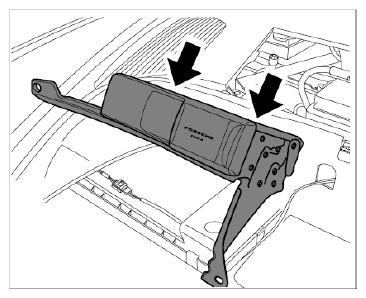

    Fig 1: Locating CD Changer Support At Plenum Panel
    G09828207Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Screw in and tighten fastening screws M6 -1-  for CD changer support. → Tightening torque: 10 Nm (7.5 ftlb.)

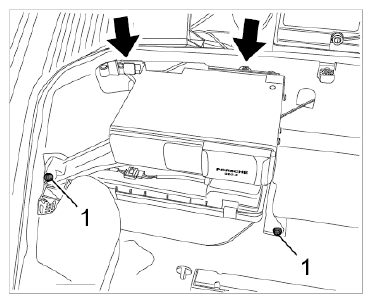

    Fig 2: Locating CD Changer Support For USA
    G09828208Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install luggage-compartment lining -2-  by screwing in the eight sheetmetal screws -1-  (→ 703019 REMOVING AND INSTALLING LUGGAGE-COMPARTMENT COVER - section on "Installing").

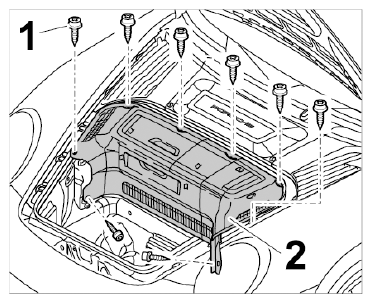

    Fig 3: Identifying Luggage-Compartment Cover
    G09828209Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. RoW Version:  Remove rear part of right front wheel housing liner → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER - section on "Removing".
  6. Fit right front wheel using socket-wrench insert 300  . → 440519 REMOVING AND INSTALLING WHEEL - section on "Installing".
  7. Connect ground connection to battery → 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
