Preliminary Work For Carbon Canister

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground connection from battery → 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
  2. USA version:  Remove luggage-compartment lining -2-  by unscrewing the eight sheetmetal screws -1-  (→ 703019 REMOVING AND INSTALLING LUGGAGE-COMPARTMENT COVER - section on "Removing").

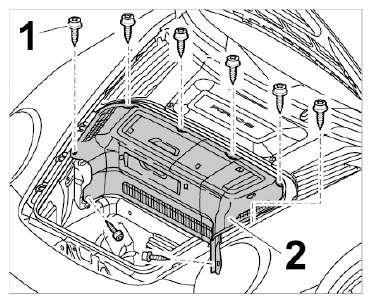

    Fig 1: Identifying Luggage-Compartment Cover
    G09828196Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening screws for CD changer support -1-  . The support is also fixed on the body side by two retaining clips -Arrows-  .

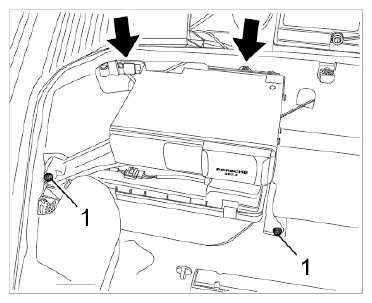

    Fig 2: Locating Retaining Clips
    G09828197Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Lift up support together with CD changer and disengage retaining clips at the plenum panel -Arrows-  .

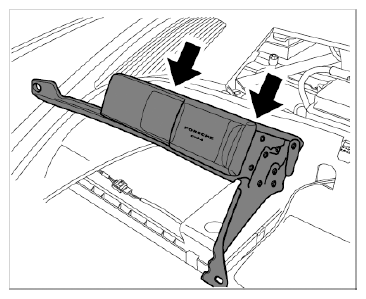

    Fig 3: Locating CD Changer Support At Plenum Panel
    G09828198Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Disconnect cable plug to CD changer.
  6. RoW Version:  Remove right front wheel using socket-wrench insert 300  . → 440519 REMOVING AND INSTALLING WHEEL - section on "Removing".
  7. Remove rear part of right front wheel housing liner → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER - section on "Removing".
