Procedure For Releasing Connectors That Are Difficult To Move

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Pull connector off lid-release motor.

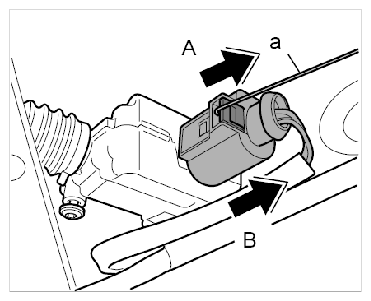

Fig 1: Pulling Lid-Release Connector Off Using Wire
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Release connector on motor for lid-release with suitable auxiliary materials (e.g. angled piece of wire with diameter of approx. 1 mm) -a- -arrow A- and pull off -arrow B- .
  Engage wire at the release. Pulling on the wire in direction of arrow releases the connector and can be pulled off.
Pull off connector on seat belt tensioner.

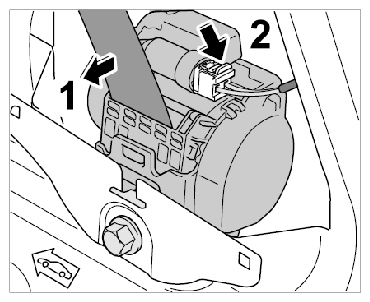

Fig 2: Releasing Connector For Seat-Belt Tensioner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release connector -2- on seat-belt tensioner with a screw driver in -direction of arrow- .
2. 2.2. Pull off connector on seat belt tensioner.
Pull off connector on headlight.

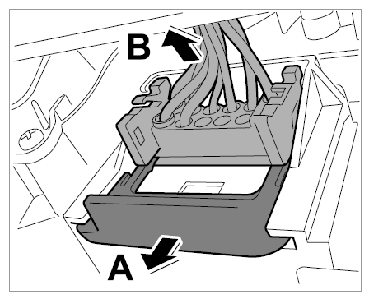

Fig 3: Pulling Off Connector On Headlight
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Pull securing clip completely down and out -arrow A- .
2. 3.2. Pull off connector on headlight -arrow B- .
Pull connector off sensor for fuel level.

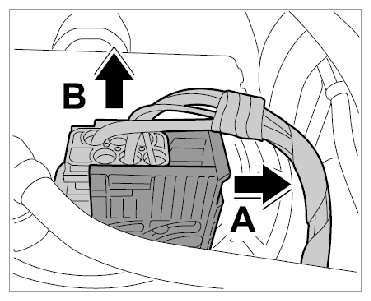

Fig 4: Pulling Connector Off Sensor For Fuel Level
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Release connector completely on fuel level sensor -arrow A- and pull it off -arrow B- .
Pull off connector on Tiptronic transmission.

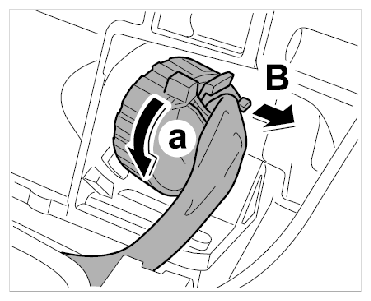

Fig 5: Pulling Off Connector On Tiptronic Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Release connector on Tiptronic transmission by turning anti-clockwise -arrow a- and remove -arrow B- .
