Converting Pins

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

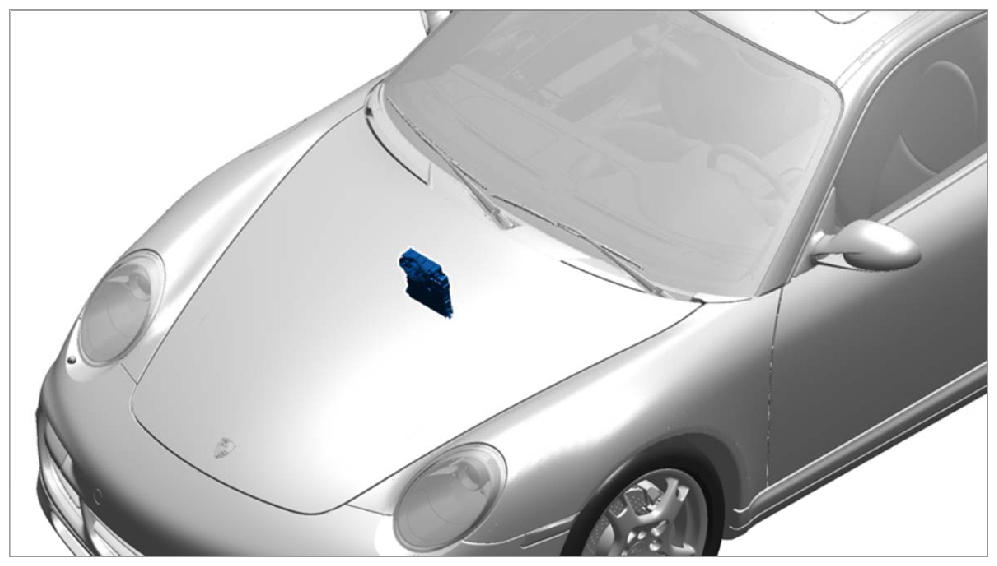

Fig 1: Identifying Power Distributor Installation Position
G09831588Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Switch off ignition and remove ignition key.
  2. Release locking mechanism for the B+ line -A-  and pull B+ connection off the power distributor -B-  .

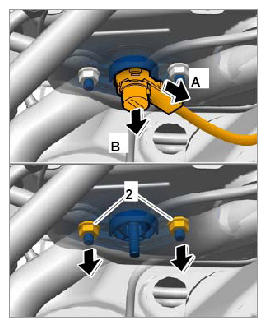

    Fig 2: Pulling B+ Connection Of Power Distributor
    G09831589Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew and remove the two fastening nuts -2-  .
  4. Unscrew and remove both plastic screws -1-  for the cover in the passenger footwell and remove cover by pulling it downwards.

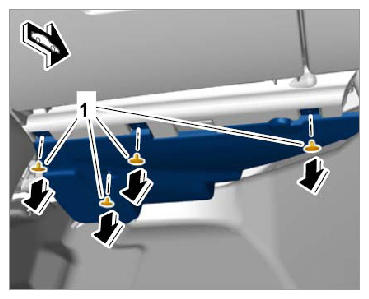

    Fig 3: Removing Plastic Screws
    G09831590Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Pull the power distributor away from the firewall and lower it down into the passenger footwell.

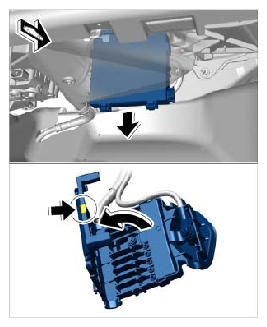

    Fig 4: Disengaging Power Distributor
    G09831591Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Break the green/red service label and open the power distributor.
  7. Unscrew and remove fastening nut -1-  and remove B+ line -2-  from the power distributor.

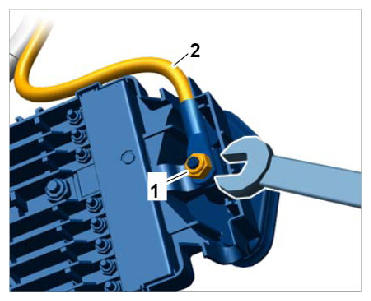

    Fig 5: Removing B+ Fastening Nut
    G09831592Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Replace pins on the power distributor -1-  with screw bolts -2-  .

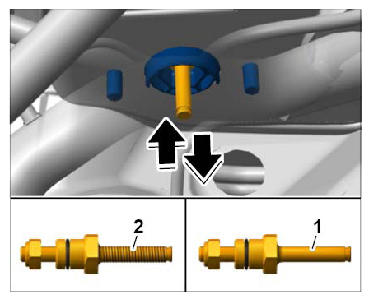

    Fig 6: Replacing Pins On Power Distributor
    G09831593Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Position B+ line on the power distributor and secure with a fastening nut.
  10. Close the power distributor until the lid engages securely and seal with the red service label.

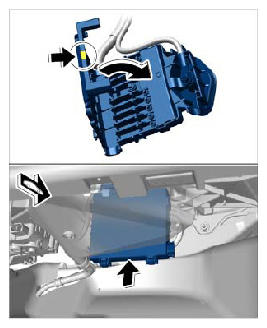

    Fig 7: Closing Power Distributor
    G09831594Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Check the plastic seal on the power distributor for damage; replace it if in doubt.
  12. Slide the power distributor upwards between the heater/air-conditioning unit and the bulkhead, and engage in the bulkhead.
  13. Secure the power distributor with the two fastening screws -2-  . → Tightening torque: 15 Nm (11 ft. lb.)

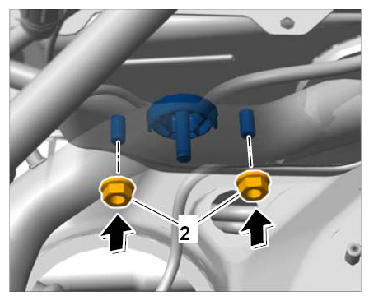

    Fig 8: Securing Power Distributor
    G09831595Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  14. Replace old B+ line for the battery -1-  with the new B+ line for the battery from the repair kit.
    1. 14.1. Loosen terminal clamp for the old B+ line -5-  from the battery.
    2. 14.2. Disconnect the line coming from the old B+ line (emergency power supply) -3-  at a suitable place.
    3. 14.3. Secure terminal clamp for the new B+ line to the battery.
    4. 14.4. Join the line coming from the new B+ line -3-  to the disconnected line using the crimp connector supplied in the repair kit -4 -  .
    5. 14.5. Push cable shoe of the B+ line for the battery -2-  as far as it will go onto the screw bolt on the power distributor and secure with a fastening nut.

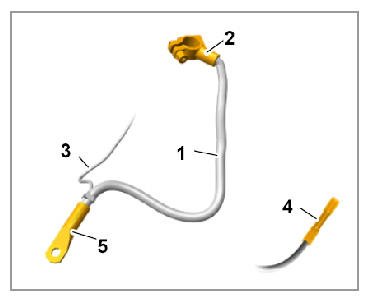

      Fig 9: Identifying B+ Line For Battery
      G09831596Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  15. Fit cover in the passenger footwell and secure it with plastic screws.
