Installing The Current Distributor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Position the fuse elements -3- in the power distributor in accordance with the wiring diagram and position the marked connection leads in turn, fit the washer -2- and tighten with the fastening nuts -1- . → Tightening torque: 6 ft. lb. → Tightening torque: 11 ft. lb.

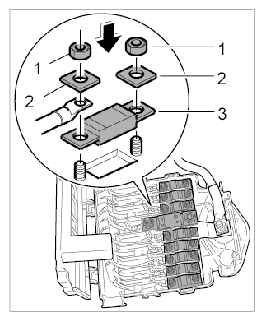

Fig 1: Positioning Fuse Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the B+ line on the power distributor and tighten with the fastening screws. → Tightening torque: 11 ft. lb.
Information

If a new power distributor needs to be installed or a fuse element replaced, then a new cover for the fuse elements (blue) and a new seal label (red) must be fitted. The spare parts are summarized in the PET as a package.
Insert the blue cover in power distributor and clip in place.

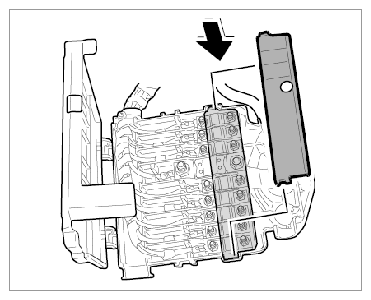

Fig 2: Positioning Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the power distributor until the lid is felt to engage and seal with the red seal label.

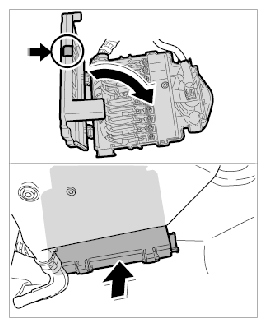

Fig 3: Closing Power Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the plastic seal on the power distributor for damage; replace it if in doubt.
Slide the power distributor upwards between the heater/air-conditioning unit and the bulkhead, and engage in the bulkhead.
Screw down power distributor with the two fastening nuts -2- . → Tightening torque: 11 ft. lb.

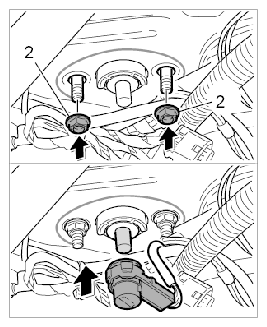

Fig 4: Installing Power Distributor Nuts And Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the B+ of the battery onto the mounting point as far as the stop. Check that the B+ line sits firmly.
