Removing Wire Harness For Tiptronic Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

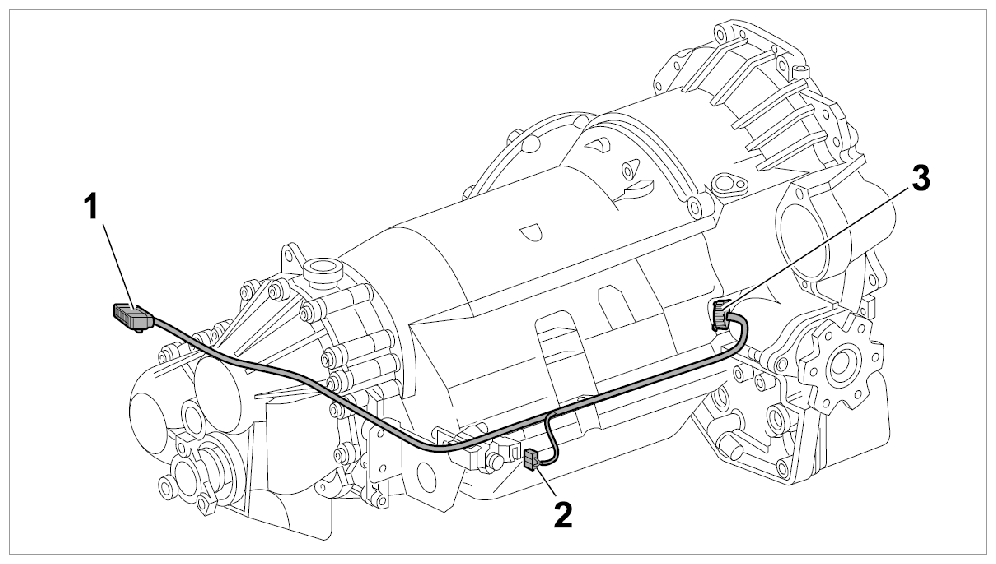

Fig 1: Identifying Wiring Harness For Tiptronic Transmission Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection between wire harness for Tiptronic transmission and rear wire harness
Connector for change-over valve
Connector for Tiptronic transmission

Disconnect plug connection between wire harness for Tiptronic transmission and rear wire harness -1- .

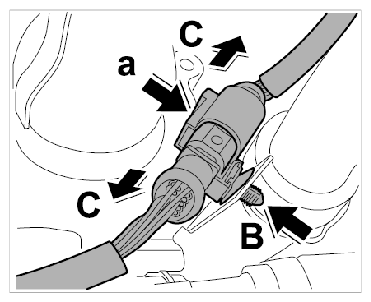

Fig 2: Disconnecting Plug Connection Between Tiptronic Transmission And Rear Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unclip plug connection between wire harness for Tiptronic transmission and rear wire harness -Arrow B-
2. 1.2. Disconnect plug connection between wire harness for Tiptronic transmission and rear wire harness -Arrow a- -Arrows C- .
Pull off connector on change-over valve -2- .

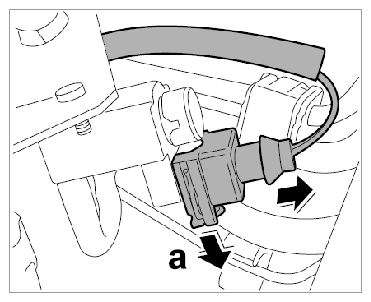

Fig 3: Pulling Off Connector On Change-Over Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Release connector on change-over valve -Arrow a- and pull off.
Pull off connector on Tiptronic transmission -3- .

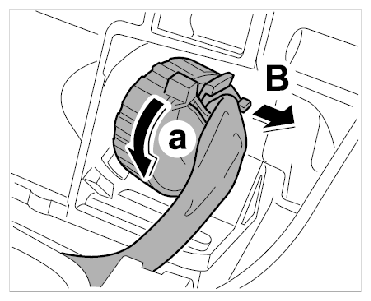

Fig 4: Pulling Off Connector On Tiptronic Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Release connector on Tiptronic transmission by turning anti-clockwise -Arrow a- and remove -Arrow B- .
Remove wire harness for Tiptronic transmission.

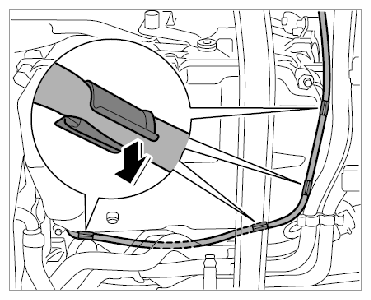

Fig 5: Removing Wire Harness For Tiptronic Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Unclip and remove wire harness for Tiptronic transmission from the sheetmetal clips.
