Installing Wire Harness For Tiptronic Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

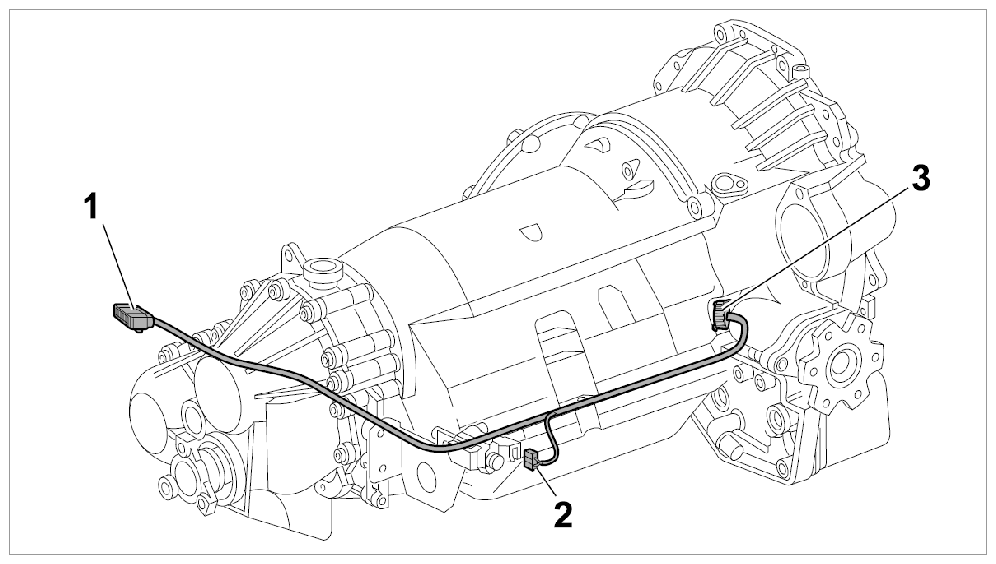

Fig 1: Identifying Wire Harness For Tiptronic Transmission Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plug connection between wire harness for Tiptronic transmission and rear wire harness
Connector for change-over valve
Connector for Tiptronic transmission

Install wire harness for Tiptronic transmission.

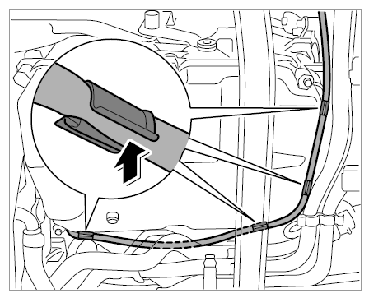

Fig 2: Installing Wire Harness For Tiptronic Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Lay wire harness for Tiptronic transmission and clip into the sheetmetal clips.
Push connector onto Tiptronic transmission -3- .

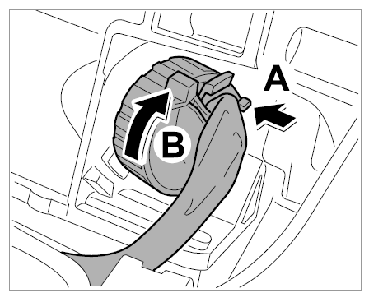

Fig 3: Pushing Connector Onto Tiptronic Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Push connector onto Tiptronic transmission -Arrow A- and lock by turning clockwise -Arrow B-
Push connector onto change-over valve -2- .

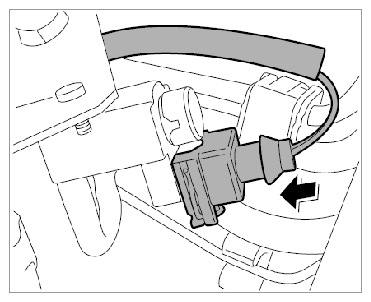

Fig 4: Pushing Connector Onto Change-Over Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Push connector onto change-over valve until it is felt to engage.
Push together plug connection between wire harness for Tiptronic transmission and rear wire harness -1- .

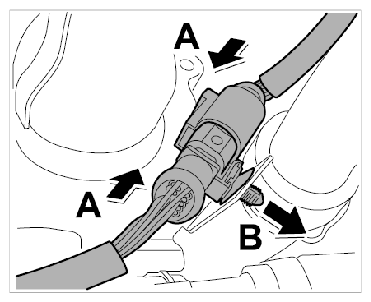

Fig 5: Pushing Plug Connection Between Tiptronic Transmission And Rear Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Push together plug connection between wire harness for Tiptronic transmission and rear wire harness until it is felt to engage -Arrows A- .
2. 4.2. Clip in plug connection between wire harness for Tiptronic transmission and rear wire harness -Arrow B- .
