Installing Optical Waveguide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Observe the general information on optical waveguides. → General information on optical waveguides - MOST bus

Cut off the optical contacts of the damaged optical waveguide, isolate it and tie it to the main wire harness.
Information

The range of spare parts available for optical waveguides depends on the vehicle equipment. Depending on the vehicle equipment, there is a specific set containing the individual optical waveguides.

Select the required optical waveguide and remove it from the set.

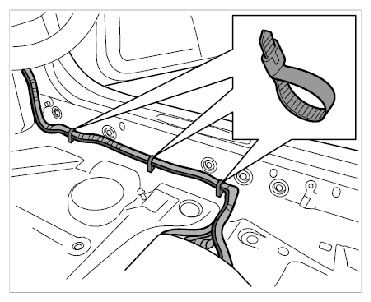

Route the new optical waveguide along the main wire harness, guide it through the existing cable ducts and tie it to the main wire harness using tie-wraps.

Fig 1: Identifying Optical Waveguide To Main Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

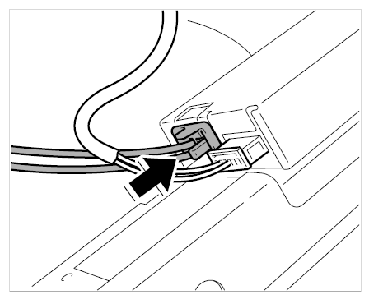

Connect the connectors for the new optical waveguide to the affected parts until the connectors are felt to engage. The illustration shows the connector on the CD changer as an example.

Fig 2: Connecting Connector For Optical Waveguide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Read out fault memory and erase if required.
Check operation of audio components.
