Removing Air Guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew the screw-in pins -1- and remove the clips -2- (-Arrow A- ).

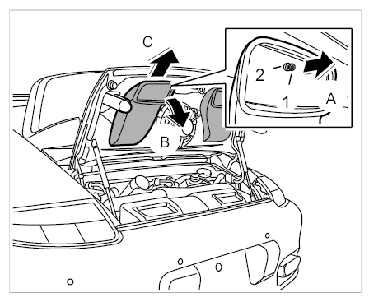

Fig 1: Removing Air Guides From Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold out the air guides -Arrow B- and remove them -Arrow C- .
