Disconnecting Plug Connection From Rear Lid To Main Wire Harness

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Open the rear lid.

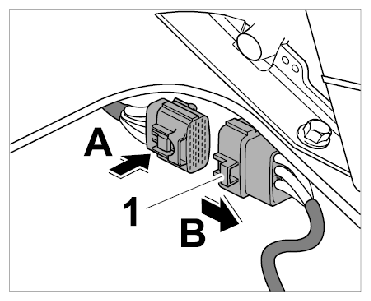

Release the locking lug -1- for the electric plug connection -Arrow A- and disconnect it -Arrow B- .

Fig 1: Disconnecting Wire Harness On Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

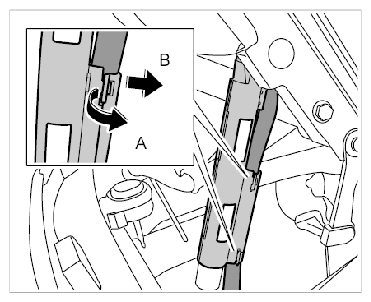

Open the wiring duct -Arrow A- and take out the line -Arrow B- .

Fig 2: Loosening Line On Hinge For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
