Securing Pump Unit For Spoiler Drive

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the two electric lines to the pump unit -Arrow A-  .

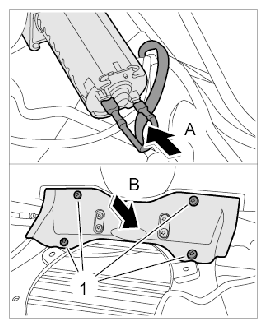

    Fig 1: Securing Pump Unit For Spoiler Drive
    G09831498Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert the cover with the pump unit -Arrow B-  and secure with the fastening screws -1-  .
