Installing Wire Harness For Rear Spoiler: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Clip in the wire harness.

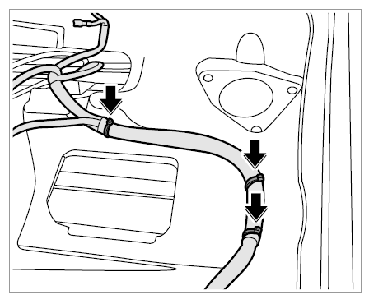

Fig 1: Clipping In Wire Harness For Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install auxiliary brake light. → Installing Auxiliary Brake Light - section on "Installing"
Install engine-compartment light. → Installing Bulb For Engine Compartment Light - section on "Installing"
Information

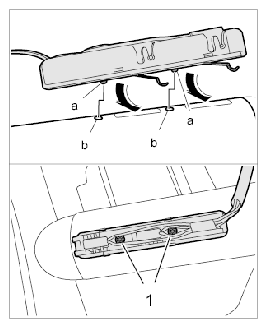

Make sure that pins a are inserted into the bores b .
Insert the holder with the micro switches into the hydraulic cylinder and secure with fastening screws -1- .

Fig 2: Securing Micro Switches On Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the cap onto the micro switches until it engages securely.

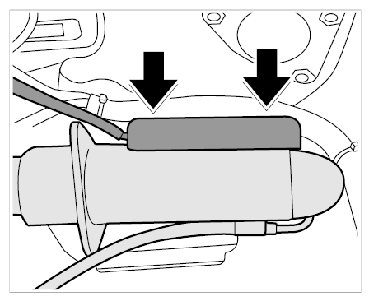

Fig 3: Fitting Cap For Micro Switches
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place hydraulic cylinder in installation position and secure with fastening screws -1- .

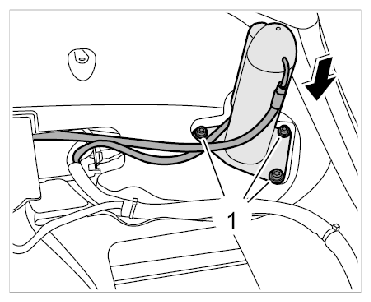

Fig 4: Securing Right Hydraulic Cylinder For Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
