Installing Fan Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place the fan motor in installation position -Arrow A- and secure with the fastening screws -1- .

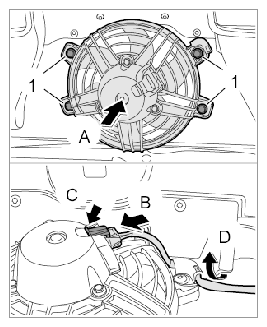

Fig 1: Securing Fan Motor On Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on connector -Arrow B- until the locking lug -C- is felt to engage.
Insert the line into the holder -Arrow D- .
