Installing Air Guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the remains of the old double-sided adhesive tape strips -a-  and stick on strips of new double-sided adhesive tape.

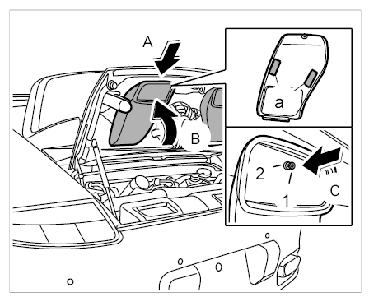

    Fig 1: Installing Air Guides
    G09831500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert the air guides -Arrow A-  and fold them up -Arrow B-  .
  3. Insert the clips -2-  and then press in the screw-in pins -1-  (-Arrow C-  ).
