Connecting Plug Connection From Rear Lid To Main Wire Harness

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

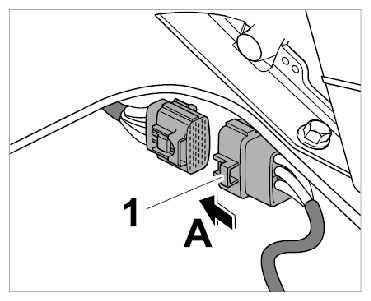

Connect the electric plug connection -Arrow A- until the locking lug -1- is felt to engage.

Fig 1: Locking Wire Harness On Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

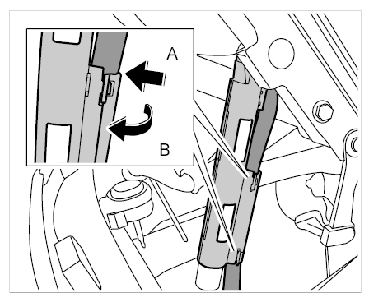

Insert the wire harness into the wiring duct -Arrow A- .

Fig 2: Securing Line On Hinge For Rear Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the wiring duct -Arrow B- until the locking lugs are felt to engage.
