Removing Rear ABS Wire Harness

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

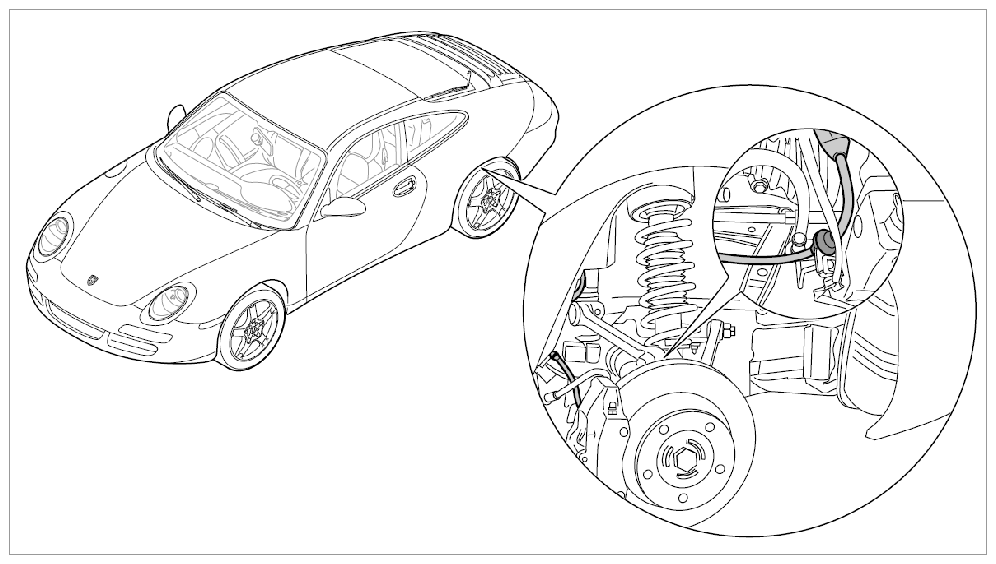

Fig 1: Identifying Rear ABS Wire Harness Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release the cable retainer -arrow A- and pull off the two connectors -arrow B- .

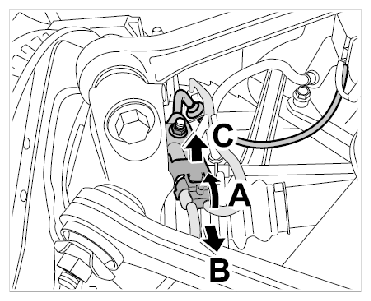

Fig 2: Disconnecting Plug Connection For Rear Wheel Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening nut and remove the connector socket -arrow C- .
Remove the ABS wire harness from the brackets -arrows- .

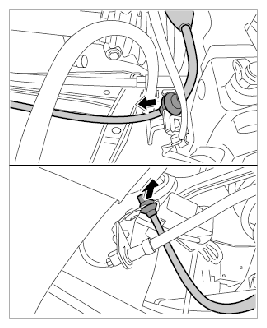

Fig 3: Removing ABS Wire Harness From Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When cutting the ABS wire harness, make sure that there is enough line length left to join to the new lines.
Cut off the ABS wire harness around -a- and press inward with the rubber sleeve -b- -arrow- .

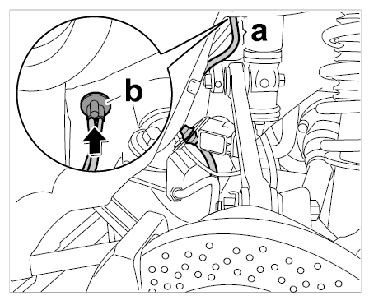

Fig 4: Cutting Off ABS Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with TPM.
Cut through the rubber sleeve at the side of the HBA line -a- and remove the HBA line -arrow- .

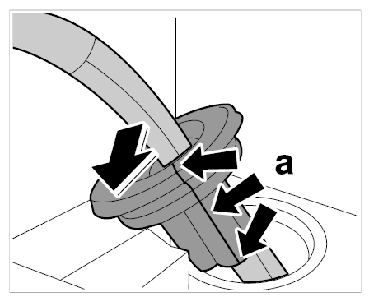

Fig 5: Cutting Off Rubber Sleeve
