Removing Front ABS Wire Harness

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

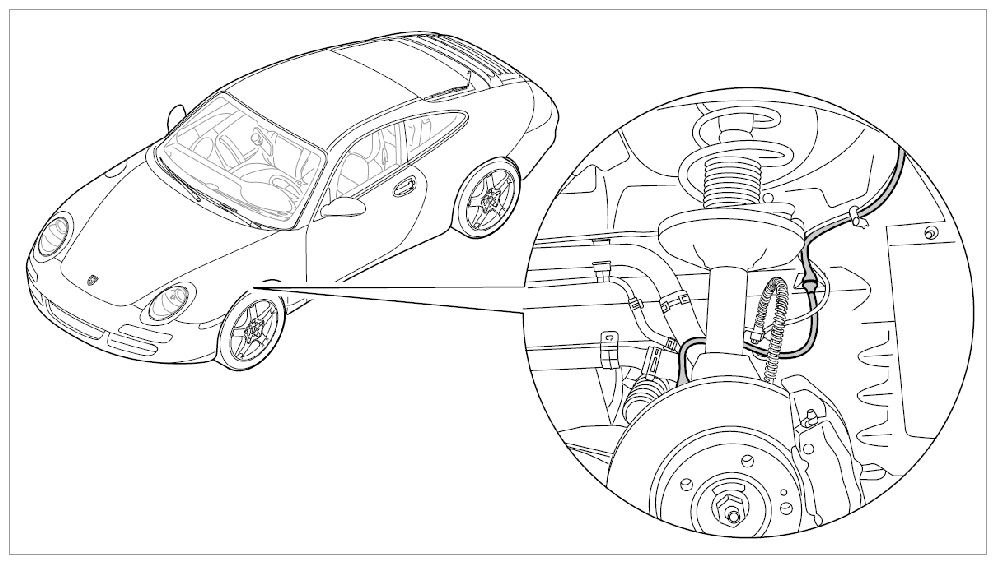

Fig 1: Identifying Front ABS Wire Harness Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release the cable retainer -arrow A- and pull off the two connectors -arrow B- .

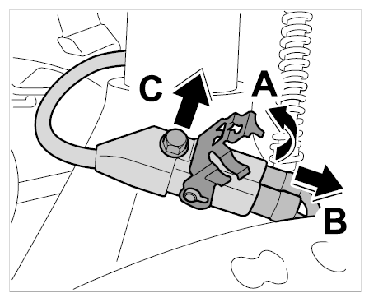

Fig 2: Disconnecting Plug Connection For Front Wheel Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening screw and remove the connector socket -arrow C- .
Remove the ABS wire harness from the brackets -arrows A- .

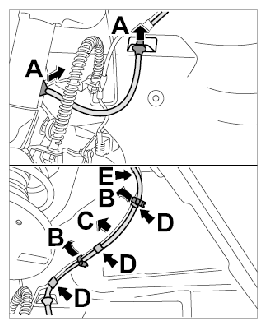

Fig 3: Removing ABS Wire Harness From Brackets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open the clips -arrows B- and remove the ABS wire harness -arrow C- .
Remove the fabric tape -D- .
Information

When cutting the ABS wire harness, make sure that there is enough line length left to join to the new lines.
Cut off the ABS wire harness around -E- and remove it.
Cut through the fabric tape in the plenum panel, in the area around -a- , and expose the remaining ABS lines.

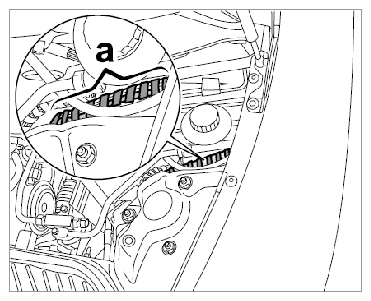

Fig 4: Identifying Fabric Tape Area Of Plenum Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
