Removing Wire Harness For AWS (Folding Sports Bucket Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

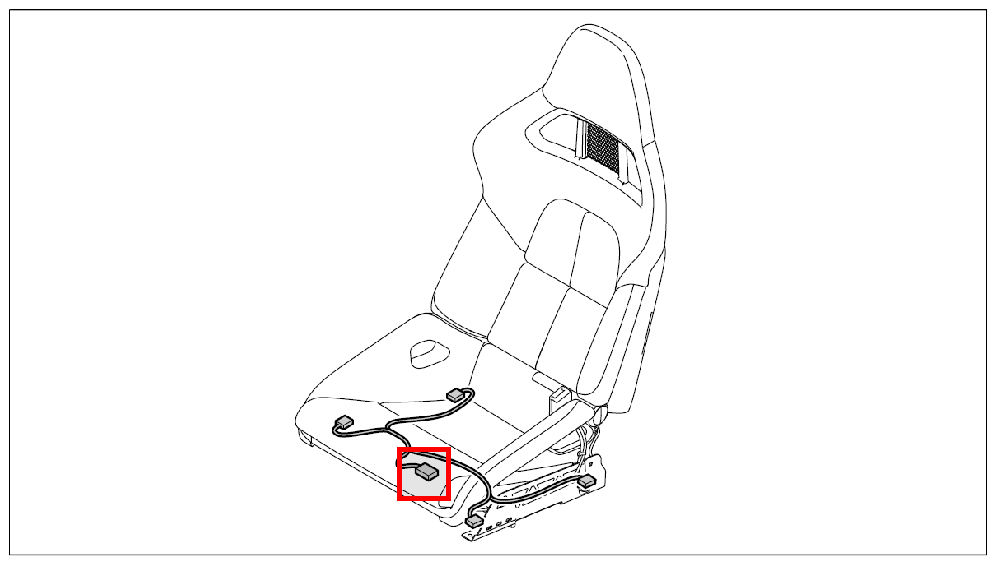

Fig 1: Identifying Wire Harness For AWS Installation Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

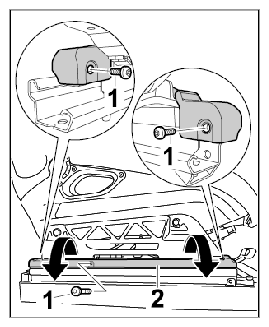

Remove cover for AWS sensors at the left and right.
1. 1.1. Unscrew three fastening screws -1- .
2. 1.2. Remove cover for AWS sensors -2- (-arrows- ).

  Fig 2: Removing Cover For AWS Sensors
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove wire harness for AWS.

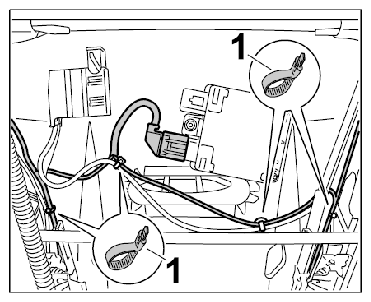

1. 2.1. Remove tie-wraps -1- on the seat shell.

  Fig 3: Removing Wire Harness For AWS At Seat Shell
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

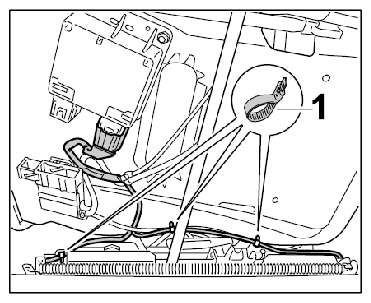

2. 2.2. Remove tie-wraps -1- on the seat frame at the left and right.

  Fig 4: Removing Wire Harness For AWS At Seat Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

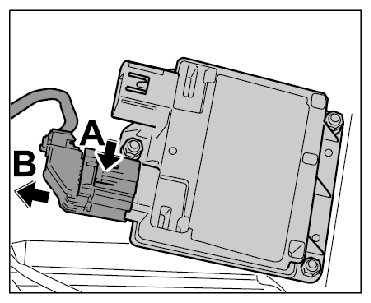

Release connector on the AWS control unit -arrow A- and pull it off -arrow B- .

Fig 5: Pulling Off Connector On AWS Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

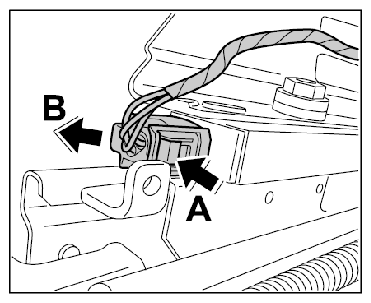

Release connectors on the four AWS sensors -arrow A- and pull them off -arrow B- .

Fig 6: Pulling Off Connector On AWS Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove wire harness for AWS.
