Installing Wire Harness For AWS (Folding Sports Bucket Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

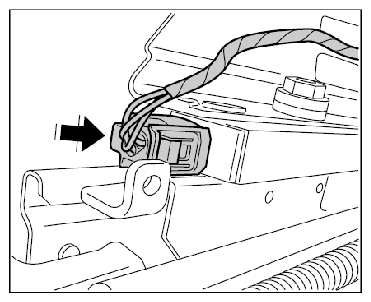

Connect connectors to the four AWS sensors -arrow- until the connectors engage securely.

Fig 1: Connecting Connector On AWS Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

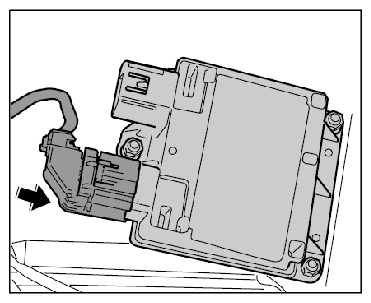

Connect connector to the AWS control unit -arrow- until the connector engages securely.

Fig 2: Connecting Connector On AWS Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wire harness for AWS.

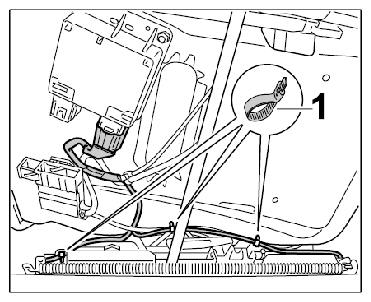

1. 3.1. Secure wire harness for AWS to the seat shell using new tie-wraps -1- .

  Fig 3: Securing Wire Harness For AWS To Seat Shell
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

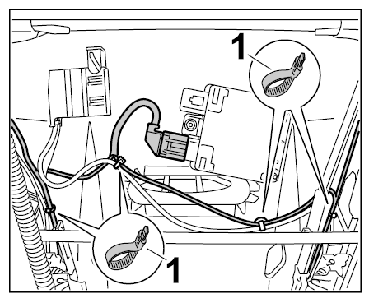

2. 3.2. Secure wire harness for AWS to the seat frame at the left and right using new tie-wraps -1- .

  Fig 4: Securing Wire Harness For AWS To Seat Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cover for AWS sensors at the left and right.

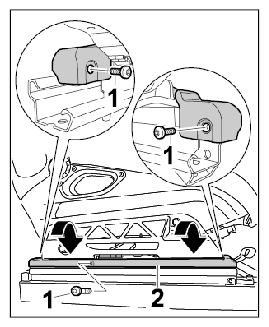

1. 4.1. Position cover for AWS sensors -2- on the seat rail.
2. 4.2. Tighten three fastening screws -1- . → Tightening torque: 4 Nm (3 ft. lb.) .
