Removing Wire Harness For Seat (Folding Sports Bucket Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

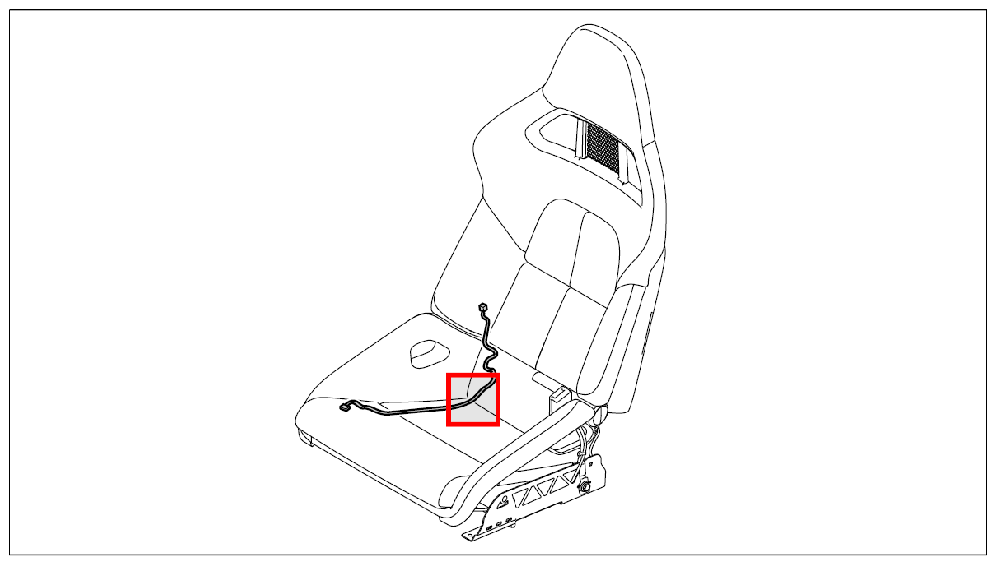

Fig 1: Identifying Wire Harness For Seat Installation Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

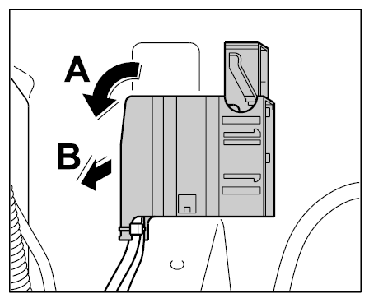

Turn airbag connector socket 90° to the left -arrow A- and remove it from the seat shell -arrow B- .

Fig 2: Removing Airbag Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

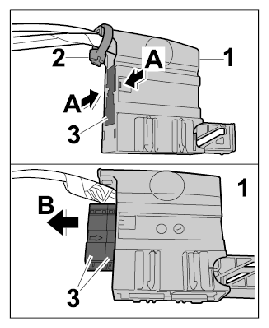

Disconnect airbag connector socket.
1. 2.1. Remove tie-wrap -2- on the airbag connector socket -1- .
2. 2.2. Release the connector socket -1- (-arrows A- ) and remove the two single connectors -3- (-arrow B- ).

  Fig 3: Disconnecting Airbag Connector Socket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

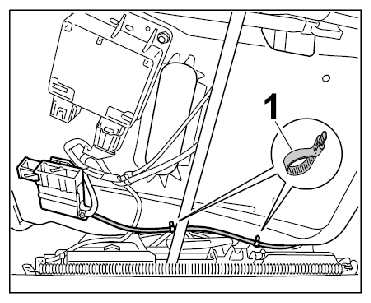

Remove the two tie-wraps -1- on the seat shell.

Fig 4: Removing Wire Harness At Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

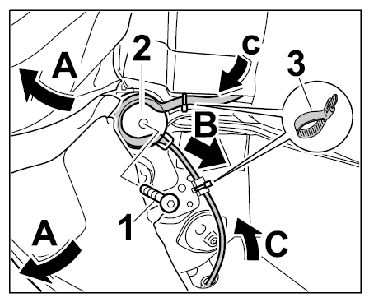

Remove wire harness.
1. 4.1. Lift up both pieces of padding -arrows A-
2. 4.2. Unscrew the fastening screw -1- and take off the cover -2- - -arrow B-
3. 4.3. Remove the two tie-wraps -3- .
4. 4.4. Pull the wire harness out of the seat shell and out of the backrest -arrows C- .

  Fig 5: Removing Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
