Removing Backrest Side Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

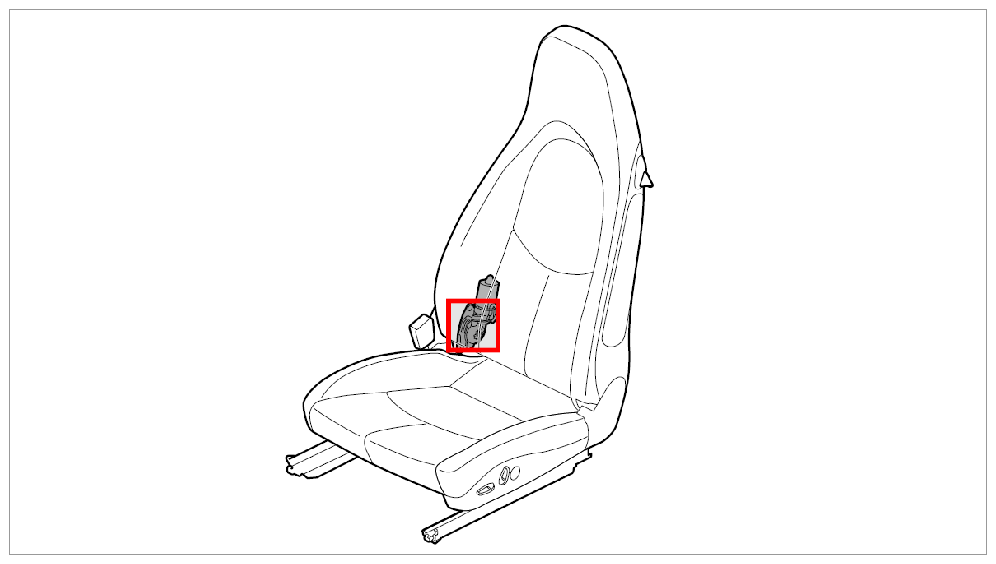

Fig 1: Identifying Motor For Backrest Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the four fastening screws -1- and remove backrest side support -2- .

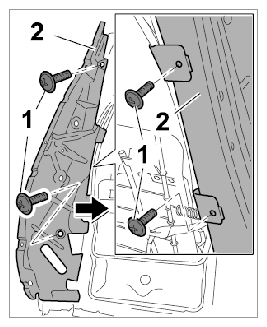

Fig 2: Removing Backrest Side Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
